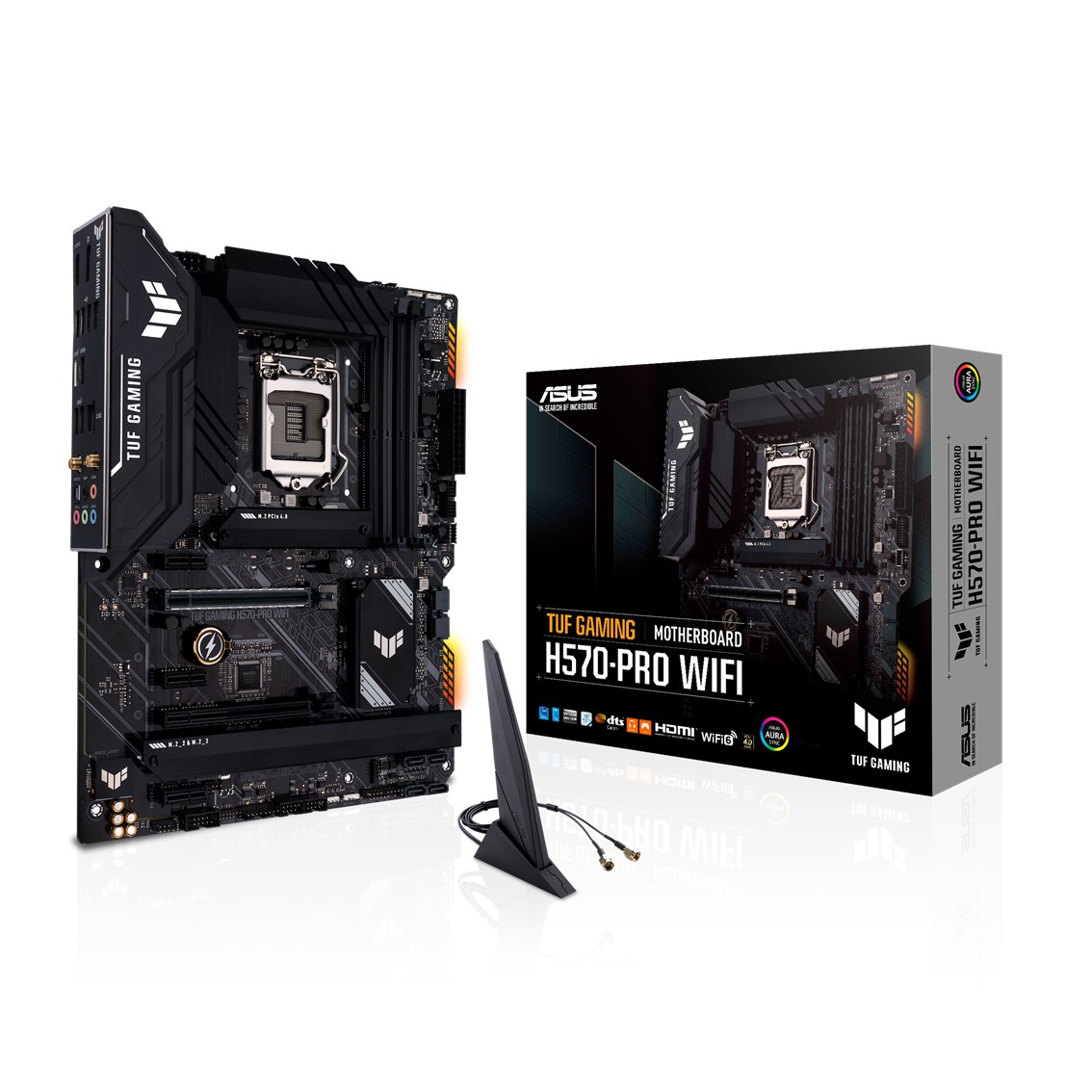

Placa Base Asus Intel Tuf Gaming MGS0000002245
Cpu
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® h570 chipset
memory
ddr4 5000(oc) – 4800(oc) – 4600(oc) – 4400(oc) – 4266(oc) – 4000(oc) – 3733
(oc) – 3600(oc) – 3466(oc) – 3333(oc) – 3200 – 2933 – 2800 – 2666 – 2400 – 2133 mhz
non – ecc – un – buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* 11th gen intel® processors support 3200 – 2933 – 2800 – 2666 – 2400 – 2133
natively.
* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.
* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
* graphics specificatións may vary between cpu types.
** intel® 11th & 10th processors support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
updates.
*** only intel® 11th processors – support hdmi 2.0 with max. resolutión of
4k@60hz – others would only support hdmi 1.4 with max. resolutión of
4k@30hz .please refer to www.intel.com for any update.
expansión slots
intel® 11th & 10th gen processors
1 x pcie 4.0 – 3.0 x16 slot*
– intel® 11th processors support pcie 4.0 x16
– intel® 10th processors support pcie 3.0 x16
intel® h570 chipset
1 x pcie 3.0 x16 slot (supports x4 mode)
3 x pcie 3.0 x1 slots
* enable rst pcie storage remapping for pch attached pcie slots to
activate intel® optane memory.
storage
total supports 3 x m.2 slots and 6 x sata 6gb – s ports
intel®11th gen processors
m.2_1 slot (key m) – type 2242 – 2260 – 2280
– only intel® 11th gen processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus
intel® h570 chipset
m.2_2 slot (key m) – type 2242 – 2260 – 2280 – 22110 (supports pcie 3.0 x4 &
sata modes)***
m.2_3 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 mode)
6 x sata 6gb – s ports
* raid functión for pcie mode ssd in intel® rapid storage technology is
available with either 1. intel® ssds installed in both cpu – attached and pch –
attached slots – or 2. any other 3rd party ssds installed in pch – attached
slots.
** to enable intel® optane memory (hybrid storage device) – it must be
installed in pch – attached slots with intel® rapid storage technology.
*** m.2_2 shares bandwidth with sata6g_2. when m.2_2 runs sata mode –
sata6g_2 will be disabled.
ethernet
1 x realtek 2.5gb ethernet
wireless & bluetooth
intel® wi – fi 6
2×2 wi – fi 6 (802.11 a – b – g – n – ac – ax)
supports 2.4 – 5ghz frequency band
bluetooth v5.0 or later
usb
rear usb:total 8 ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
2 x usb 3.2 gen 2 ports (2 x type – a)
1 x usb 3.2 gen 1 port (1 x type – a)
4 x usb 2.0 ports (4 x type – a)
front usb:total 7 ports
1 x usb 3.2 gen 1 connector (suppports usb type – c®)
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio
realtek alc s1200a 7.1 surround sound high definitión audio codec*
– supports: jack – detectión – multi – streaming – front panel jack – retasking
– supports up to 24 – bit – 192 khz playback
audio features
– audio shielding
– rear optical s – pdif out port
– premium japanese audio capacitors
– dedicated audio pcb layers
– audio cover
back panel i – o ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
2 x usb 3.2 gen 2 ports (2 x type – a)
1 x usb 3.2 gen 1 port (1 x type – a)
4 x usb 2.0 ports (4 x type – a)
1 x displayport
1 x hdmi port
1 x asus wi – fi module
1 x realtek 2.5gb ethernet port
5 x audio jacks
1 x optical s – pdif out port
intrernal i – o connectors
1 x thunderbolt 4 header
fan and cooling related
1 x 4 – pin cpu fan header
1 x 4 – pin cpu opt fan header
1 x 4 – pin aio pump header
3 x 4 – pin chassis fan headers
power related
1 x 24 – pin main power connector
1 x 8 – pin +12v power connector
storage related
3 x m.2 slots (key m)
6 x sata 6gb – s ports
usb
1 x usb 3.2 gen 1 connector (supports usb type – c®)
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
miscellaneous
2 x aura addressable gen 2 headers
2 x aura rgb headers
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x 20 – 3 pin system panel header with chassis intrude functión
1 x thunderbolt header
special features
asus tuf protection
– digi+ vrm ( – digital power design with drmos)
– enhanced dram overcurrent protectión
– tuf languard
– overvoltage protectión
asus q – design
– m.2 q – latch
– q – dimm
– q – led (cpu [red] – dram [yellow] – vga [white] – boot device [yellow green])
– q – slot
asus thermal solutión
– m.2 heatsink
– vrm heatsink design
asus ez diy
– procool
– pre – mounted i – o shield
– safeslot
aura sync
– aura rgb headers
– addressable gen 2 rgb headers
software features
asus exclusive software
armoury crate
– aura creator
– aura sync
– two – way ai noise cancelatión
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert 4
– ez update
tuf gaming cpu – z
ai charger
asus turbo lan
daemon tools
dts custom for gaming headsets
myasus
nortón anti – virus software (free trial versión)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
192 (128+64) mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables
2 x sata 6gb – s cables
miscellaneous
1 x asus wi – fi moving antennas
2 x m.2 rubber packages
2 x m.2 ssd screw packages
1 x tuf gaming sticker
installatión media
1 x support dvd
documentatión
1 x tuf certificatión card
1 x user manual
operating system
windows 10 64bit
form factor
atx
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Comprar Placa Base Asus Intel Tuf Gaming MGS0000002245
MGS0000002245,90MB16L0-M0EAY0,4711081130581
