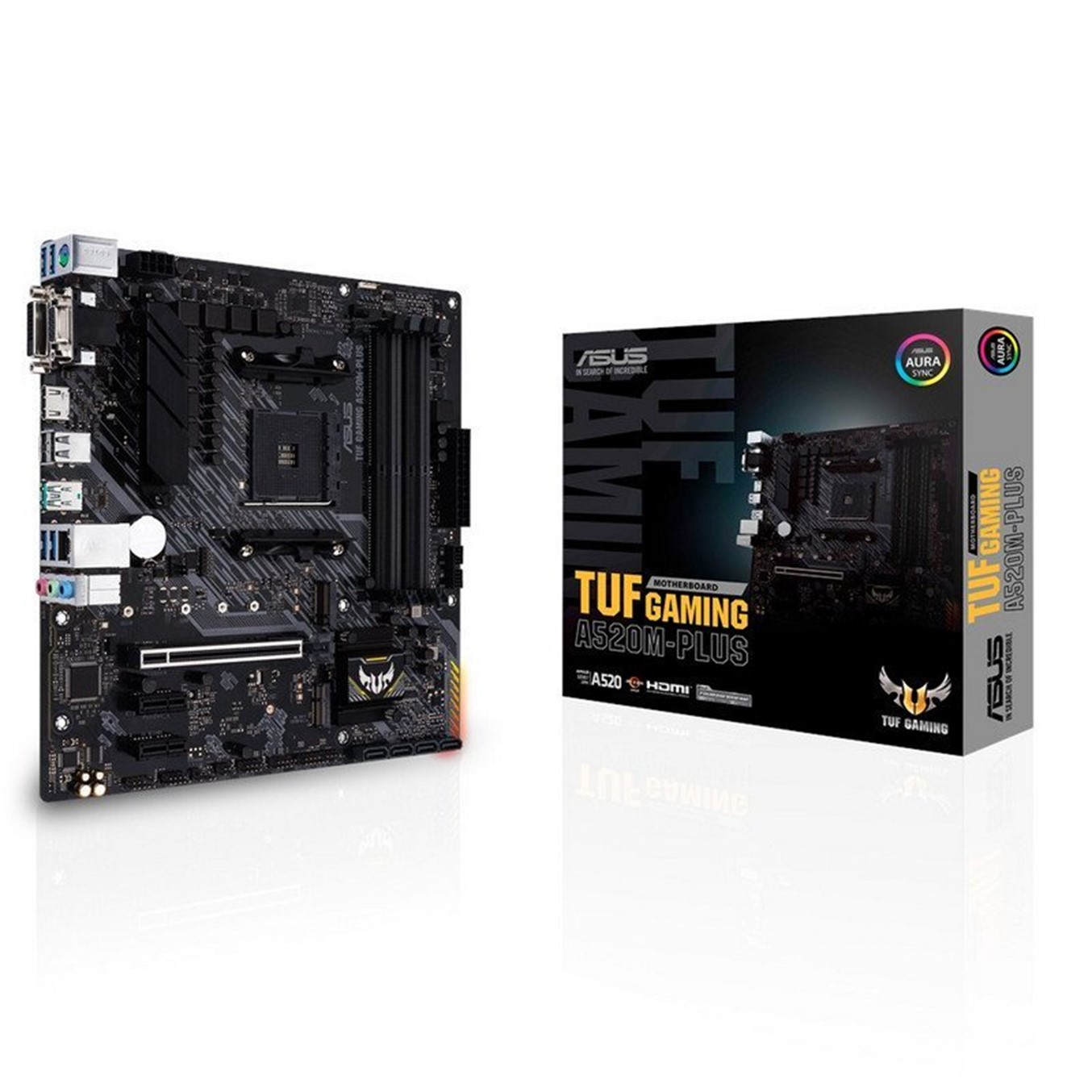

Placa Base Asus Amd Tuf Gaming A520M – Plus Socket Am4 Ddr4 X4 3200Mhz Max 128Gb D – Sub Dvi – D Hdmi Matx

Placa Base Asus Amd Tuf Gaming TUF-A520M-PLUS

Cpu
amd am4 socket for 3rd gen amd ryzen and 3rd gen amd ryzen with
radeon graphics processors processors *
* refer to www.asus.com for cpu support list
chipset
amd a520
memory
4 x dimm – max. 128gb – ddr4 4800(o.c.) – 4600(o.c) – 4466(o.c.) – 4400(o.c) – 4266
(o.c.) – 4133(o.c.) – 4000(o.c.) – 3866(o.c.) – 3733(o.c.) – 3600(o.c.) – 3466(o.c.) – 3333
(o.c.) – 3200 – 3000 – 2800 – 2666 – 2400 – 2133 mhz un – buffered memory *
dual channel memory architecture
ecc memory (ecc mode) support varies by cpu.
* refer to www.asus.com for the memory qvl (qualified vendors lists).
* the maximum memory frequency supported varies by processor
graphic
integrated graphics in the 3rd gen amd ryzen with radeon graphics
processors
1 x d – sub
1 x dvi – d
1 x hdmi 2.1(4k@60hz)
expansión slots
3rd gen amd ryzen and 3rd gen amd ryzen with radeon graphics
processors
1 x pcie 3.0 x16 (x16 mode)
amd a520 chipset
2 x pcie 3.0 x1
storage
total supports 1 x m.2 slot(s) and 4 x sata 6gb – s ports
3rd gen amd ryzen and 3rd gen amd ryzen with radeon graphics
processors :
1 x m.2 socket 3 – with m key – type 2242 – 2260 – 2280 – 22110(pcie 3.0 x4 and
sata modes) storage devices support
amd a520 chipset :
4 x sata 6gb – s port(s) –
support raid 0 – 1 – 10
lan
realtek l8200a 1gb ethernet
tuf languard
wireless data network
m.2 slot only (key e) (support pcie interface)*
*wi – fi module is sold separately.
audio
realtek alc887 7.1 surround sound high definitión audio codec
– supports : jack – detectión – multi – streaming – front panel jack – retasking – up
to 24 – bit – 192khz playback
audio feature :
– audio shielding
– dedicated audio pcb layers
– premium japanese audio capacitors
* choose the chassis with hd audio module in front panel to support
8 – channel audio output.
usb ports
rear usb port ( total 7 )
1 x usb 3.2 gen 2 port(s)(1 x type – a)
4 x usb 3.2 gen 1 port(s)(4 x type – a)
2 x usb 2.0 port(s)(2 x type – a)
front usb port ( total 5 )
2 x usb 3.2 gen 1 port(s)(2 x type – a)
3 x usb 2.0 port(s)(3 x type – a)
software features
asus exclusive software
armoury crate
– aura creator
– aura sync
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert 2+
– ez update
– pc cleaner
– system informatión
tuf gaming cpu – z
ai charger
asus turbo lan
nortón anti – virus software (free trial for 60 days)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
asus special features
asus tuf protection
– asus digi+ vrm
– asus esd guards
– tuf languard
– asus overvoltage protectión
– asus safeslot core+
– asus stainless – steel back i – o
asus q – design
– asus q – dimm
– asus q – slot
asus thermal solutión
– aluminum heatsink design
back i – o ports
1 x ps – 2 keyboard – mouse combo port(s)
1 x dvi – d
1 x d – sub
1 x hdmi
1 x lan (rj45) port(s)
1 x usb 3.2 gen 2 (teal blue)type – a –
4 x usb 3.2 gen 1 (blue) type – a
2 x usb 2.0
3 x audio jack(s)
internal i – o ports
1 x cpu fan connector(s)
2 x chassis fan connector(s)
1 x aura rgb strip header
1 x usb 3.2 gen 1(up to 5gbps) connector(s) support(s) additiónal 2 usb 3.2
gen 1 port(s)
2 x usb 2.0 connector(s) support(s) additiónal 3 usb 2.0 port(s)
1 x m.2 socket 3 with m key – type 2242 – 2260 – 2280 – 22110 storage devices
support (sata & pcie 3.0 x 4 mode)
1 x m.2 with e key for wi – fi module
1 x spi tpm header
4 x sata 6gb – s connector(s)
1 x s – pdif out header(s)
1 x 24 – pin eatx power connector(s)
1 x 8 – pin eatx 12v power connectors
1 x front panel audio connector(s) (aafp)
1 x clear cmos jumper(s)
1 x system panel connector
1 x com port header
accessories
user’s manual
i – o shield
2 x sata 6gb – s cable(s)
1 x supporting dvd
1 x tuf gaming sticker
1 x tuf certificatión card(s)
1 x m.2 ssd screw package(s)
1 x m.2 key e screw package(s)
bios
256 mb flash rom – uefi ami bios
manageability
wol by pxe
operating system
windows® 10 64 – bit
form factor
matx form factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Comprar Placa Base Asus Amd Tuf Gaming TUF-A520M-PLUS
