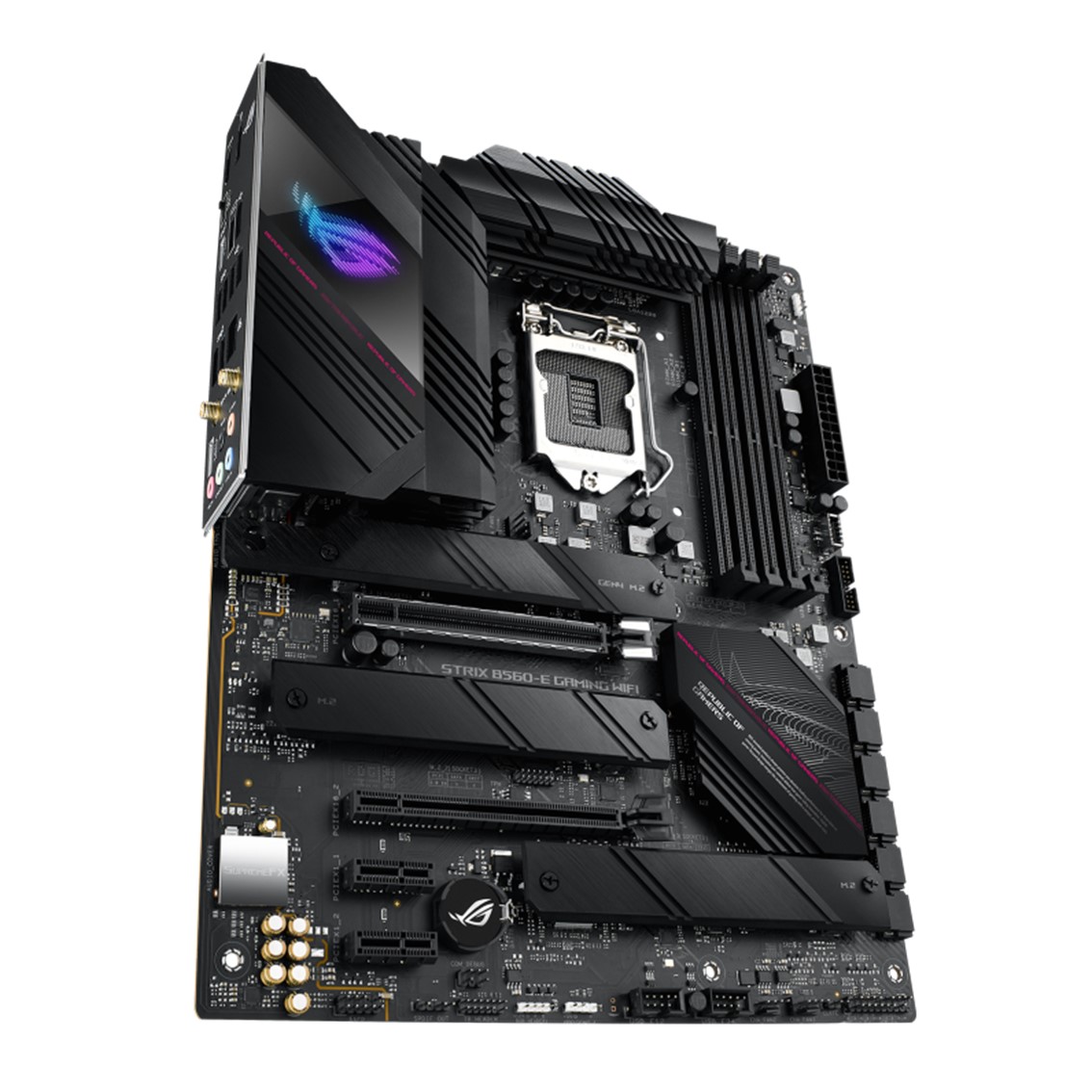

Placa Base Asus Intel Rog Strix MGS0000003263
Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® b560 chipset
memory
4 x dimm – max. 128gb – ddr4 5333(oc) – 5000(oc) – 4800(oc) – 4600(oc) – 4400
(oc) – 4266(oc) – 4000(oc) – 3733(oc) – 3600(oc) – 3466(oc) – 3333
(oc) – 3200 – 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un – buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.
* 11th gen intel® processors support 3200 – 2933 – 2800 – 2666 – 2400 – 2133
natively.
* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x displayport 1.4
1 x hdmi 1.4 – 2.0***
* graphics specificatións may vary between cpu types.
**only intel® 11th processors – support displayport 1.4 with max. resolutión
of 5120 x 2880 @60hz – others would only support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz .please refer to www.intel.com for any
update.
*** only intel® 11th processors support hdmi 2.0 with max. resolutión of
4k@60hz – others will only support hdmi 1.4 with max. resolutión of
4k@30hz. please refer to www.intel.com for any updates.
expansión slots
intel® 11th&10th gen processors
1 x pcie 4.0 – 3.0 x16 slot(s)
– intel® 11th processors support pcie 4.0 x16 mode
– intel®10th processors support pcie 3.0 x16 mode
intel® b560 chipset
1 x pcie 3.0 x16 slot (supports x4 mode)*
2 x pcie 3.0 x1 slots
* the pciex16_2 shares bandwidth with the m.2_2. when m.2_2 runs x4
mode – pciex16_2 will be disabled.
storage
total supports 3 x m.2 slots and 6 x sata 6gb – s ports
intel®11th gen processors
m.2_1 slot (key m) – type 2242 – 2260 – 2280 – 22110
– only intel® 11th processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus.
intel® b560 chipset
m.2_2 slot (key m) – type 2242 – 2260 – 2280 – 22110 (supports pcie 3.0 x4 &
sata modes)*
m.2_3 slot (key m) – type 2242 – 2260 – 2280 – 22110 (supports pcie 3.0 x4
mode)**
6 x sata 6gb – s ports
* the m.2_2 share bandwidth with pciex16_2. when pciex16_2 runs x4
mode – m.2_2 cant run pcie mode (when m.2_2 runs at sata mode –
sata6g_1 will be disabled)
** to enable intel® optane memory (hybrid storage device) – it must be
installed in pch – attached slots with intel® rapid storage technology.
wireless & bluetooth
intel® wi – fi 6e
2×2 wi – fi 6e (802.11 a – b – g – n – ac – ax)
supports 2.4 – 5 – 6ghz frequency band*
bluetooth v5.2 hardware ready**
* wifi 6e 6ghz regulatory may vary between countries – and functión will be
ready in windows 10 build 21h1 or later.
** bluetooth v5.2 functión will be ready in windows 10 build 21h1 or later.
usb
rear usb (total 10 ports)
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
2 x usb 3.2 gen 2 ports (2 x type – a)
2 x usb 3.2 gen 1 ports (2 x type – a)
5 x usb 2.0 ports (4 x type – a – 1 x audio usb type – c®)
front usb:
total 7 ports
front usb (total 7 ports)
1 x usb 3.2 gen 1 connector(s) (suppport(s) usb type – c®)
1 x usb 3.2 gen 1 header(s) support(s) additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 header(s) support(s) additiónal 4 usb 2.0 ports
audio
rog supremefx 7.1 surround sound high definitión audio codec alc4080
– impedance sense for front and rear headphone outputs
– supports: jack – detectión – multi – streaming – front panel jack – retasking
– high quality 120 db snr stereo playback output and 113 db snr recording
input
– supports up to 32 – bit – 384 khz playback
audio features
– supremefx shielding technology
– alc4080 + savitech sv3h712 amp
– rear audio usb type – c® port
– premium japanese audio capacitors
– audio cover
* due to limitatións in hda bandwidth – 32 – bit – 192 khz is not supported for 7.1
surround sound audio.
back panel i – o ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
2 x usb 3.2 gen 2 port(s) (2 x type – a)
2 x usb 3.2 gen 1 port(s) (2 x type – a)
5 x usb 2.0 port(s) (4 x type – a – 1 x audio usb type – c®)
1 x hdmi port
1 x displayport
1 x asus wi – fi module
1 x intel® i225 – v 2.5gb ethernet
5 x audio jacks
1 x bios flashback buttón
intrernal i – o connectors
fan and cooling related
1 x 4 – pin cpu fan header(s)
1 x 4 – pin cpu opt fan header(s)
1 x 4 – pin aio pump header(s)
3 x 4 – pin chassis fan header(s)
power related
1 x 24 – pin main power connector
1 x 8 – pin +12v power connector
1 x 4 – pin +12v power connector
storage related
3 x m.2 slots (key m)
6 x sata 6gb – s ports
usb
1 x usb 3.2 gen 1 connector (support(s) usb type – c®)
1 x usb 3.2 gen 1 header(s) support(s) additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 header(s) support(s) additiónal 4 usb 2.0 ports
miscellaneous
2 x aura addressable gen 2 header(s)
2 x aura rgb header(s)
1 x clear cmos header
1 x front panel audio header (aafp)
1 x spi tpm header (14 – 1pin)
1 x 20 – 5 pin system panel header
1 x thunderbolt header
1 x s – pdif out header
special features
extreme engine digi+
– 5k black metallic capacitors
asus q – design
– m.2 q – latch
– q – dimm
– q – led (cpu [red] – dram [yellow] – vga [white] – boot device [yellow green])
– q – slot
asus thermal solutión
– m.2 heatsink
asus ez diy
– bios flashback buttón
– bios flashback led
– procool
– pre – mounted i – o shield
– safeslot
aura sync
– aura rgb header(s)
– addressable gen 2 rgb header(s)
software features
rog exclusive software
– ramcache iii
– rog cpu – z
– gamefirst vi
– sonic studio iii + sonic studio virtual mixer
– sonic radar iii
– dts® sound unbound
– overwolf
– anti – virus software
asus exclusive software
armoury crate
– aida64 extreme (60 days free trial)
– aura creator
– aura sync
– two – way ai noise cancelatión
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert 4
– ez update
myasus
winrar
daemon tools
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
128 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables
4 x sata 6gb – s cables
1 x rog audio usb type – c® cable
miscellaneous
1 x asus wi – fi moving antennas
1 x cable ties pack
1 x rog graphics card holder
1 x m.2 q – latch package
2 x m.2 rubber packages
1 x rog key chain
1 x rog strix stickers
1 x rog strix thank you card
installatión media
1 x support dvd
documentatión
1 x user manual
operating system
windows® 10 64 – bit
form factor
atx
30.5cm x 24.4cm
