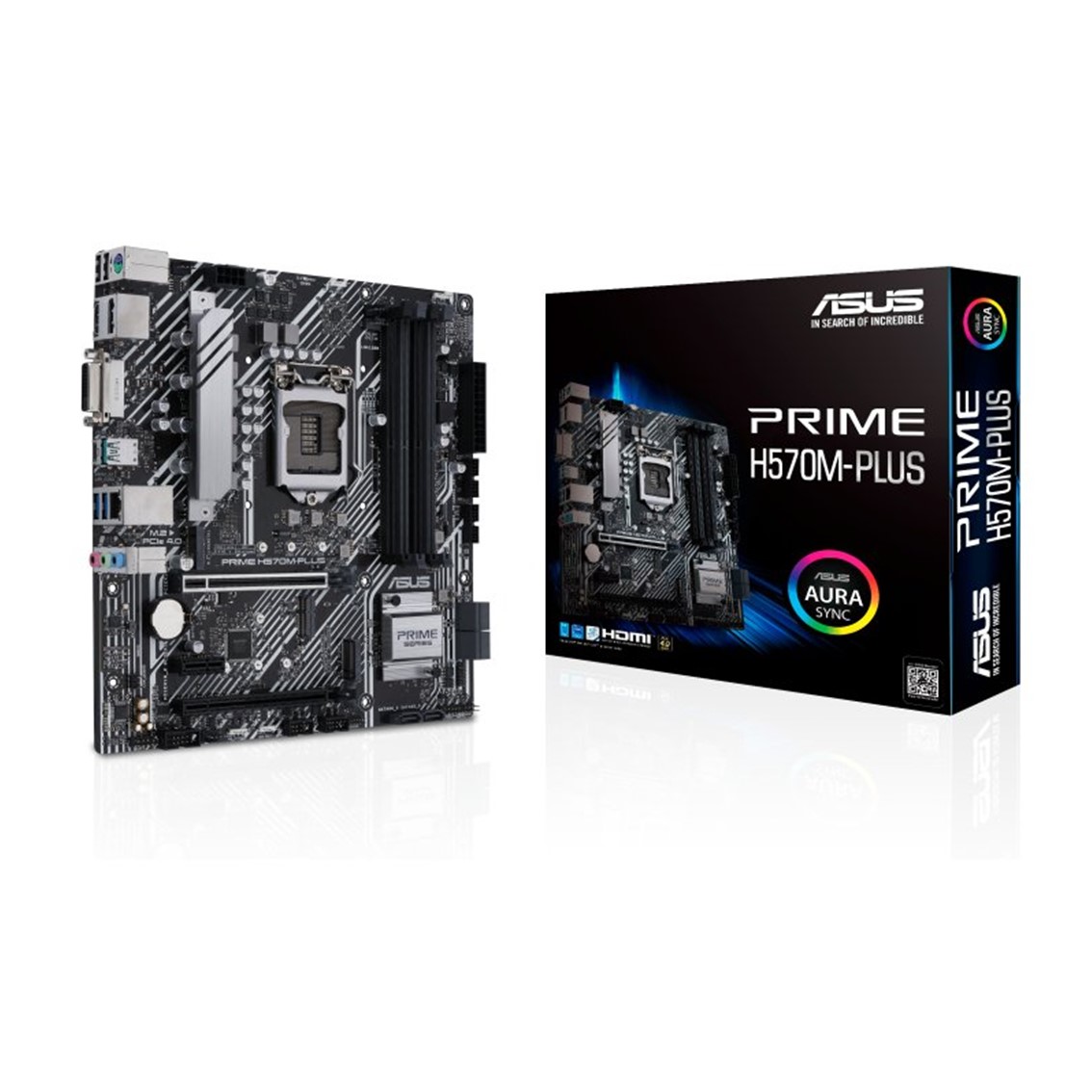

Placa Base Asus Intel Prime H570M – Plus Socket 1200 Ddr4 X4 Max 128Gb 2933 Mhz Display Port Hdmi Dvi – D Matx

Placa Base Asus Intel Prime H570M – Plus MGS0000002019

Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu

supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**

* refer to www.asus.com for cpu support list.

** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® h570 chipset
memory
ddr4 4600(oc) – 4400(oc) – 4266(oc) – 4000(oc) – 3733(oc) – 3600(oc) – 3466
(oc) – 3333(oc) – 3200(oc) – 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un –
buffered memory*

dual channel memory architecture

supports intel® extreme memory profile (xmp)

optimem

* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.

* 11th gen intel® processors support 2933 – 2800 – 2666 – 2400 – 2133 natively.

* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x displayport 1.4**
1 x dvi – d
1 x hdmi 2.0***
* graphics specificatións may vary between cpu types.

** intel® 11th & 10th gen processors support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
updates.

*** only intel® 11th gen processors support hdmi 2.0 with max. resolutión
of 4k@60hz – others will only support hdmi 1.4 with max. resolutión of
4k@30hz .please refer to www.intel.com for any updates.
expansión slots
1 x pcie 4.0 – 3.0 x16 + 1 x pcie 3.0 x16 (max. x4)
intel® 11th & 10th gen processors*

1 x pcie 4.0 – 3.0 x16 slot

– intel® 11th gen processors support pcie 4.0 x16 mode

– intel®10th gen processors support pcie 3.0 x16 mode

intel® h570 chipset

1 x pcie 3.0 x16 slot (supports x4 mode)

1 x pcie 3.0 x1 slot
storage
supports 2 x m.2 slots and 6 x sata 6gb – s ports
intel®11th gen processors

m.2_1 slot (key m) – type 2242 – 2260 – 2280

– only intel® 11th gen processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus

intel® h570 chipset

m.2_2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 & sata
modes)

6 x sata 6gb – s ports

raid functión in intel® rapid storage technology is available with either 1.
intel® ssds installed in both cpu – attached and pch – attached slots – or 2. any
other 3rd party ssds installed in pch – attached slots.

to enable intel® optane memory (hybrid storage device) – it must be
installed in pch – attached slots with intel® rapid storage technology.

* when a device in sata mode is installed on the m.2_2 slot – sata6g_2 port
cannot be used.
ethernet
1 x intel® i219 – v 1gb ethernet
asus languard
wireless & bluetooth
m.2 slot only (key e – cnvi & pcie)
usb
rear usb:total 6 ports
2 x usb 3.2 gen 2 ports (1 x type – a + 1 x usb type – c®)

2 x usb 3.2 gen 1 ports (2 x type – a)

2 x usb 2.0 ports (2 x type – a)

front usb:total 8 ports
2 x usb 3.2 gen 1 headers support additiónal 4 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio
realtek alc897 7.1 surround sound high definitión audio codec*

– supports: jack – detectión – multi – streaming – front panel jack – retasking

– supports up to 24 – bit – 192 khz playback

audio features

– audio shielding

– premium japanese audio capacitors

– dedicated audio pcb layers

* a chassis with an hd audio module in the front panel is required to support
7.1 surround sound audio output.
back panel i – o ports
2 x usb 3.2 gen 2 ports (1 x type – a + 1 x usb type – c®)

2 x usb 3.2 gen 1 ports (2 x type – a)

2 x usb 2.0 ports (2 x type – a)

1 x displayport

1 x dvi – d port

1 x hdmitm port

1 x intel® i219v 1gb ethernet

3 x audio jacks

1 x ps – 2 keyboard – mouse combo port
intrernal i – o connectors
fan and cooling related

1 x 4 – pin cpu fan header

1 x 4 – pin cpu opt fan header

1 x 4 – pin aio pump header

2 x 4 – pin chassis fan headers

power related

1 x 24 – pin main power connector

1 x 8 – pin +12v power connector

storage related

2 x m.2 slots (key m)

6 x sata 6gb – s ports

usb

2 x usb 3.2 gen 1 headers support additiónal 4 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

miscellaneous

2 x aura addressable gen 2 headers

2 x aura rgb headers

1 x clear cmos header

1 x com port header

1 x front panel audio header (aafp)

1 x m.2 slot (key e)

1 x s – pdif out header

1 x spi tpm header (14 – 1pin)

1 x 20 – 3 pin system panel header with chassis intrude functión

1 x thunderbolt header

special features
asus 5x protection iii

– digi+ vrm ( – digital power design with drmos)

– languard

– overvoltage protectión

– safeslot core+

– stainless – steel back i – o

asus q – design

– asus q – dimm

– asus q – slot

asus thermal solutión

– vrm heatsink design

aura sync

– aura rgb headers

– addressable gen 2 rgb headers
software features
asus exclusive software

armoury crate

– aura sync

ai suite 3

– performance and power saving utility

turbov evo

epu

digi+ vrm

fan xpert 2+

– ez update

asus cpu – z

ai charger

nortón anti – virus software (free trial versión)

daemon tools

winrar

uefi bios

asus ez diy

– asus crashfree bios 3

– asus ez flash 3

– asus uefi bios ez mode
bios
192 (128+64) mb flash rom – uefi ami bios

manageability
wol by pme – pxe
accessories
cables

2 x sata 6gb – s cables

miscellaneous

1 x i – o shield

1 x m.2 ssd screw package

1 x m.2 key e screw package

installatión media

1 x support dvd

documentatión

1 x user manual
operating system
windows® 10 64 – bit
form factor
matx form factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
