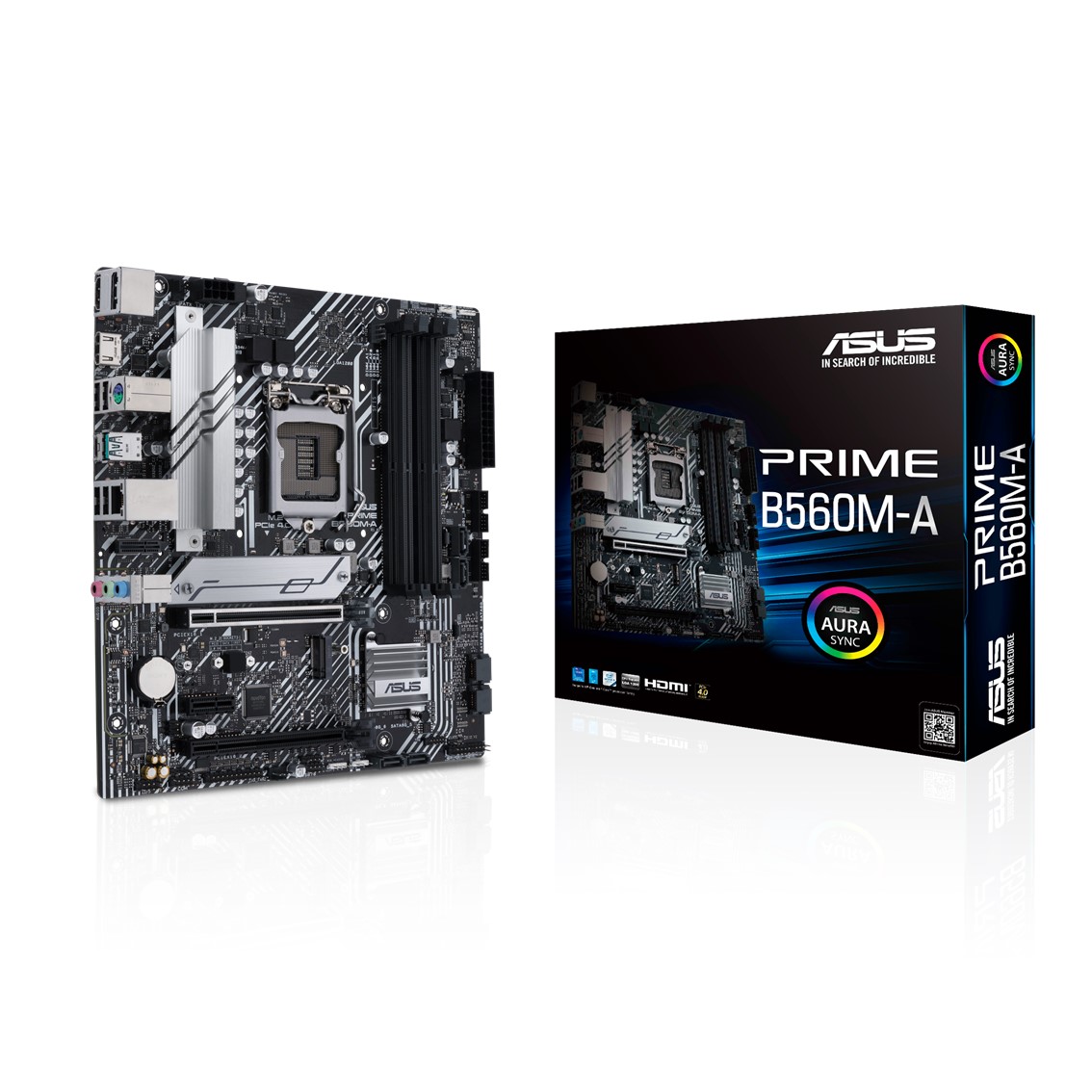

Placa Base Asus Intel Prime B560M – A MGS0000002585
Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® b560 chipset
memory
memory channels:4ddr4 (dual channel)
max memory size:128gb
ddr4 5000(oc) – 4800(oc) – 4600(oc) – 4400(oc) – 4266(oc) – 4000(oc) – 3733
(oc) – 3600(oc) – 3466(oc) – 3333(oc) – 3200 – 2933 – 2800 – 2666 – 2400 – 2133 mhz
non – ecc – un – buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.
* 11th gen intel® processors support 3200 – 2933 – 2800 – 2666 – 2400 – 2133
natively.
* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x displayport 1.4**
2 x hdmi 2.0**
* graphics specificatións may vary between cpu types.
** intel® 11th & 10th gen processors support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
updates.
*** only intel® 11th gen processors support hdmi 2.0 with max. resolutión
of 4k@60hz – others will only support hdmi 1.4 with max. resolutión of
4k@30hz .please refer to www.intel.com for any updates.
expansión slots
intel® 11th &10th gen processors
1 x pcie 4.0 – 3.0 x16 slot(s)*
– intel® 11th gen processors support pcie 4.0 x16
– intel®10th gen processors support pcie 3.0 x16
intel® b560 chipset
1 x pcie 3.0 x16 slot (supports x4 mode)*
1 x pcie 3.0 x1 slots
* enable rst pcie storage remapping for pch attached pcie slots to
activate intel® optane memory.
storage
intel®11th gen processors
m.2_1 slot (key m) – type 2242 – 2260 – 2280
– only intel® 11th gen processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus
intel® b560 chipset
m.2_2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 & sata
modes)*
6 x sata 6gb – s ports
* m.2_2 slot shares bandwidth with sata_2.when m.2_2 slot is operating in
sata mode – sata_2 will be disabled.
ethernet
1 x intel® i219 – v 1gb ethernet
asus languard
wireless & bluetooth
v – m.2 slot only (key e – cnvi & pcie)*
* wi – fi module and vertical m.2 key e bracket set are purchased separately.
usb
rear usb:total 6 ports
2 x usb 3.2 gen 2 port(s) (1 x type – a + 1 x usb type – c®)
4 x usb 2.0 port(s) (4 x type – a)
front usb:total 7 ports
2 x usb 3.2 gen 1 header(s) support(s) additiónal 4 usb 3.2 gen 1 ports
1 x usb 2.0 header(s) support(s) additiónal 2 usb 2.0 ports
1 x usb 2.0 header(s) support(s) additiónal 1 usb 2.0 ports
audio
– supports: jack – detectión – multi – streaming – front panel jack – retasking
– supports up to 24 – bit – 192 khz playbackpulgadas
audio features
– audio shielding
– premium japanese audio capacitors
– dedicated audio pcb layers
** a chassis with an hd audio module in the front panel is required to
support 7.1 surround sound audio output.
back panel i – o ports
2 x usb 3.2 gen 2 port(s) (1 x type – a – 1 x usb type – c®)
4 x usb 2.0 port(s) (4 x type – a)
1 x displayport
2 x hdmi port
1 x intel® i219 – v 1gb ethernet port
1 x v – m.2 slot (key e)
3 x audio jacks
1 x ps – 2 keyboard – mouse combo port
intrernal connectors
fan and cooling related
1 x 4 – pin cpu fan header(s)
1 x 4 – pin cpu opt fan header(s)
2 x 4 – pin chassis fan header(s)
power related
1 x 24 – pin main power connector
1 x 8 – pin +12v power connector
storage related
2 x m.2 slots (key m)
6 x sata 6gb – s ports
usb
2 x usb 3.2 gen 1 header(s) support(s) additiónal 4 usb 3.2 gen1 ports
1 x usb 2.0 header(s) support(s) additiónal 2 usb 2.0 ports
1 x usb 2.0 header(s) support(s) additiónal 1 usb 2.0 ports
miscellaneous
2 x aura addressable gen 2 header(s)
2 x aura rgb header(s)
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x lpt header
1 x s – pdif out header
1 x spi tpm header (14 – 1pin)
1 x 20 – 3 pin system panel header with chassis intrude functión
special features
asus 5x protection iii
– digi+ vrm
– enhanced dram overcurrent protectión
– esd guards
– languard
– overvoltage protectión
– safeslot core+
– stainless – steel back i – o
asus q – design
– q – dimm
– q – led (cpu [red] – dram [yellow] – vga [white] – boot device [yellow green])
– q – slot
asus thermal solutión
– flexible m.2 heatsink
– vrm heatsink design
aura sync
– aura rgb header(s)
– addressable gen 2 rgb header(s)
software features
asus exclusive software
armoury crate
– aura creator
– aura sync
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert 2+
– ez update
asus cpu – z
ai charger
daemon tools
nortón anti – virus software (free trial versión)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
128 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables
2 x sata 6gb – s cables
miscellaneous
1 x m.2 rubber package(s)
1 x m.2 ssd screw package(s)
1 x vertical m.2 key e bracket set
installatión media
1 x support dvd
documentatión
1 x user manual
operating system
windows 10 64bit
form factor
microatx
24.4cm x 23.4cm
