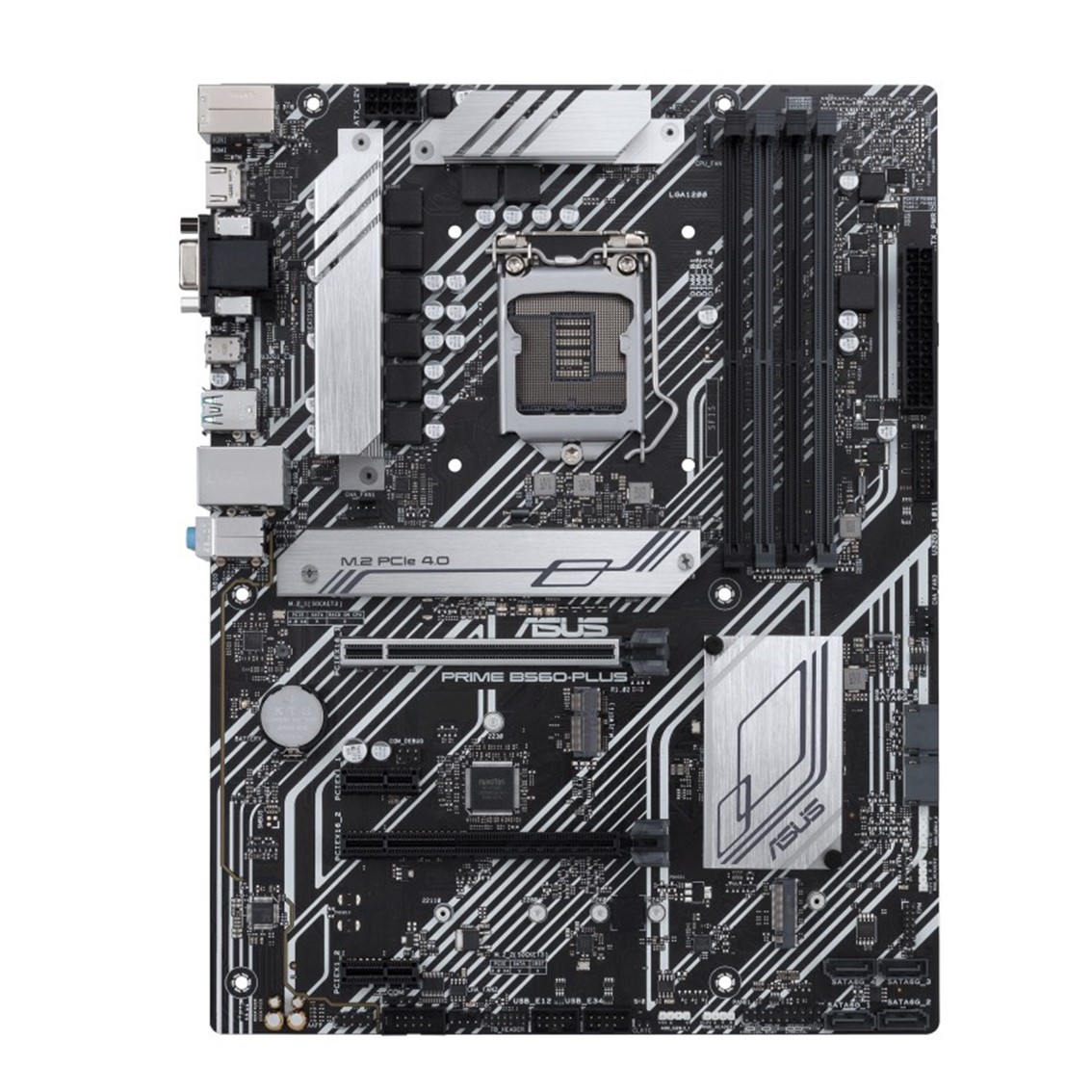

Placa Base Asus Intel Prime B560 – Plus MGS0000002021
Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0*
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® b560 chipset
memory
4 x dimm – max. 128gb -ddr4 4600(oc) – 4400(oc) – 4266(oc) – 4000(oc) – 3733
(oc) – 3600(oc) – 3466(oc) – 3333(oc) – 3200(oc) – 2933 – 2800 – 2666 – 2400 – 2133 mhz
non – ecc – un – buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
asus optimem
* 11th gen intel® core processors support 2933 – 2800 – 2666 – 2400 – 2133
natively.
* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 mhz natively – others will run at the maximum
transfer rate of ddr4 2666mhz.
refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x dp1.2**
1 x hdmitm 1.4 – 2.0***
1 x d – sub
*graphics specificatións may vary between cpu types.
** for intel® 11th & 10th processors – support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
update.
***only intel® 11th core processors support hdmi 2.0 with max.
resolutión of 4k@60hz – others will only support hdmi 1.4 with max.
resolutión of 4k@30hz. please refer to www.intel.com for any updates.
expansión slots
intel® 11th &10th gen processors
1 x pcie 4.0 – 3.0 x16 slot*
– intel® 11th core processors support pcie 4.0 x16
– intel®10th processors support pcie 3.0 x16
intel® b560 chipset
1 x pcie 3.0 x16 slot (supports x4 mode)*
2 x pcie 3.0 x1 slots
*enable rst pcie storage remapping for pch attached pcie slots to
activate intel® optane memory.
storage
total supports 2 x m.2 slots and 6 x sata 6gb – s ports
intel® 11th gen processors
– m.2_1 slot (key m) type 2242 – 2260 – 2280 – 22110 (supports pcie 4.0 x 4 )
– only intel® 11th core processors support pcie 4.0 x4 mode – this slot will
be disabled for other cpus
intel® b560 chipset
– m.2_2 slot (key m) type 2242 – 2260 – 2280 – 22110 (supports pcie 3.0 x 4 &
sata mode mode)
– 6 x sata 6gb – s ports
when a device in sata mode is installed on the m.2_2 socket – sata6g_2
port cannot be used.
when an intel® ssd is connected to a cpu – attached slot – only pass – through
single volume mode in intel® rapid storage technology will be available.
ethernet
pulgadasintel® i219 – v
asus languardpulgadas
usb
rear usb (total 7 ports)
2 x usb 3.2 gen 2 ports (2 x type – a)
1x usb 3.2 gen 1 port (1 x usb type – c®)
4 x usb 2.0 ports
front usb (total 6 ports)
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio
realtek alc897 7.1 – channel high definitión audio codec*
– jack – detectión – multi – streaming – front panel jack – retasking
– supports up to 24 – bit – 192khz playback
audio features
– audio shielding
– premium japanese audio capacitors
– dedicated audio pcb layers
*a chassis with an hd audio module in the front panel is required to support
7.1 – channel audio output.
back i – o ports
1 x dp port
1 x hdmi port
1 x d – sub port
3 x audio jacks
1 x ps – 2 keyboard – mouse combo port
1 x intel® i219 – v 1gb ethernet port
4 x usb 2.0 ports (4 x type – a)
2 x usb 3.2 gen 2 ports (2 x type – a)
1x usb 3.2 gen 1 port (1 x usb type – c®)
internal i – o connectors
fan and cooling – related
1 x 4 – pin cpu fan header
3 x 4 – pin chassis fan headers
power related
1 x 24 – pin main power connector
1 x 8 – pin +12v power connector
storage related
2 x m.2 slots (key m)
6 x sata 6gb – s ports
usb
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
miscellaneous
2 x aura addressable gen 2 headers
2 x aura rgb headers
1 x clear cmos jumper
1 x com port header
1 x front panel audio header (aafp)
1 x s – pdif out header
1 x 20 – 3pin system panel header with chassis intrude functión
1 x spi tpm header (14 – 1 pin)
1 x thunderbolt 4 header
special features
asus 5x protection iii
– asus digi+vrm
– asus languard
– asus overvoltage protectión
– asus safeslot core+
– asus stainless – steel back i – o
asus q – design:
– asus q – dimm
– asus q – slot
asus thermal solutión
– flexible m.2 heatsink
– vrm heatsink design
asus ez diy
– box headers
aura sync
– aura rgb headers
– addressable gen 2 rgb headers
software features
asus exclusive software:
armoury crate
– aura creator
– aura sync
ai suite 3
– performance and power saving utility
turbo evo
digi+ vrm
epu
fan xpert 2+
– ez update
asus cpu – z
daemon tools
nortón anti – virus software(free trial for 60 days)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
128 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables
2 x sata 6gb – s cables
miscellaneous
1 x m.2 rubber package
1 x io shield
1 x m.2 ssd screw package
1 x m.2 key e screw package
installatión media
1 x supporting dvd
documentatión
1 x user’s manual
operating system
windows® 10 – 64 bit
form factor
atx form factor
12.0 inch x 9.2 inch (30.5 cm x 23.4cm)
