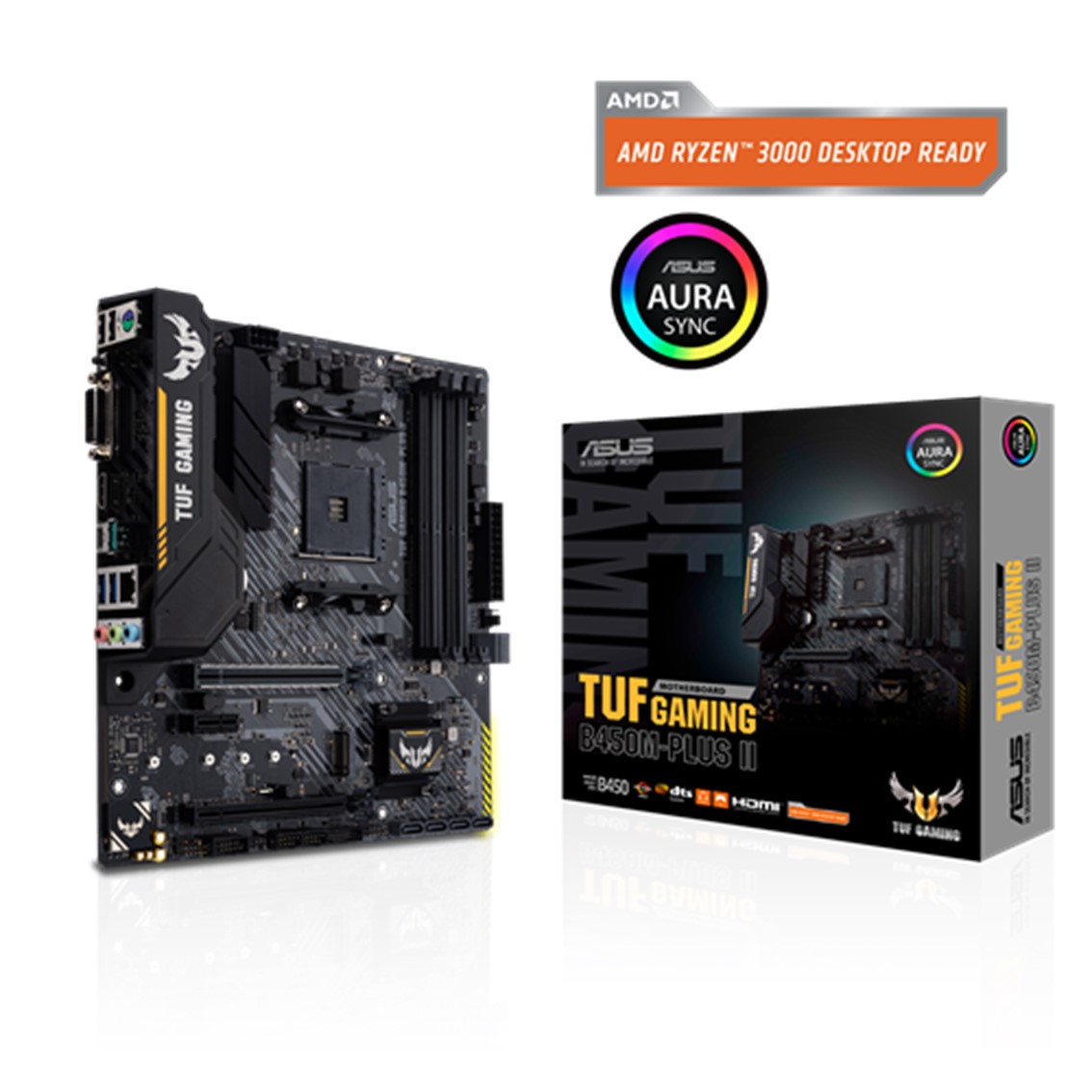

Placa Base Asus Amd Tuf Gaming MGS0000001138
Placa base de gaming micro – atx am4 amd b450 con soporte m.2 –
cancelación de ruido por ia – hdmi – dvi – d – usb 3.2 gen. 2 de tipo a – usb 3.2
gen. 1 de tipo a y c e iluminación aura sync rgb
refrigeración completa: disipador vrm – disipador pch y fan xpert 2+.
conectividad de última generación: usb 3.2 gen. 2 de tipo a.
cancelación de ruido asistida por ia para que te comuniques claramente
mientras juegas.
aura sync rgb: sincroniza la iluminación rgb con una gran variedad de
dispositivos compatibles.
cpu
amd am4 socket for 3rd – 2nd – 1st gen amd ryzen – 2nd and 1st gen amd
ryzen with radeon vega graphics – athlon with radeon vega
graphics processors *
* refer to www.asus.com for cpu support list
chipset
amd b450
memoria
3rd – 2nd – 1st gen amd ryzen – 2nd and 1st gen amd ryzen with radeon
vega graphics – athlon with radeon vega graphics processors
4 x dimm – max. 128gb – ddr4 4400(o.c) – 4000(o.c.) – 3866(o.c.) – 3733
(o.c.) – 3600(o.c.) – 3533(o.c) – 3466(o.c.) – 3400(o.c.) – 3200(o.c.) – 3000
(o.c.) – 2800(o.c.) – 2666 – 2400 – 2133 mhz un – buffered memory *
dual channel memory architecture
ecc memory (ecc mode) support varies by cpu.
* refer to www.asus.com for the memory qvl (qualified vendors lists).
* the maximum memory frequency supported varies by processor.
gráficos
integrated graphics in the 2nd and 1st gen amd ryzen with radeon
vega graphics – athlon with radeon vega graphics processors
1 x hdmi 2.0b
1 x dvi – d
*graphics specificatións may vary between cpu types.
soporte multi gpu
supports amd 2 – way crossfirex technology
slots de expansión
3rd – 2nd – 1st gen amd ryzen processors
1 x pcie 3.0 – 2.0 x16 (x16 mode)
2nd and 1st gen amd ryzen with radeon vega graphics processors
1 x pcie 3.0 – 2.0 x16 (x8 mode)
athlon with radeon vega graphics processors
1 x pcie 3.0 – 2.0 x16 (max at x4 mode)
amd b450 chipset
1 x pcie 2.0 x16 (x4 mode)
1 x pcie 2.0 x1
almacenamiento
total supports 1 x m.2 slot(s) and 6 x sata 6gb – s ports
3rd – 2nd – 1st gen amd ryzen – 2nd and 1st gen amd ryzen with radeon
vega graphics :
1 x m.2 socket 3 – with m key – type 2242 – 2260 – 2280 – 22110(pcie 3.0 x4 and
sata modes) storage devices support*1
athlon with radeon vega graphics processors :
1 x m.2 socket 3 – with m key – type 2242 – 2260 – 2280 – 22110 storage devices
support (sata mode)*1
3rd – 2nd – 1st gen amd ryzen – 2nd and 1st gen amd ryzen with radeon
vega graphics – athlon with radeon vega graphics processors :
2 x sata 6gb – s port(s) –
support raid 0 – 1 – 10
amd b450 chipset :
4 x sata 6gb – s port(s) –
support raid 0 – 1 – 10
lan
realtek rtl8111h 1gb ethernet
tuf languard
audio
realtek alc887 7.1 surround sound high definitión audio codec
– supports : jack – detectión – multi – streaming – front panel jack – retasking – up
to 24 – bit – 192khz playback
audio feature :
– exclusive dts custom for gaming headsets.
– audio cover
– audio shielding
– dedicated audio pcb layers
– premium japanese audio capacitors
puertos usb
rear usb port ( total 6 )
1 x usb 3.2 gen 2 port(s)(1 x type – a)
3 x usb 3.2 gen 1 port(s)(2 x type – a +1 x type – c)
2 x usb 2.0 port(s)(2 x type – a)
front usb port ( total 6 )
2 x usb 3.2 gen 1 port(s)(2 x type – a)
4 x usb 2.0 port(s)(4 x type – a)
software features
asus exclusive software
armoury crate
– aura creator
– aura sync
– ai noise – canceling microphone
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert 2+
– ez update
– pc cleaner
tuf gaming cpu – z
ai charger
asus turbo lan
daemon tools
dts custom for gaming headsets
nortón anti – virus software (free trial for 60 days)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
asus special features
asus tuf protection
– asus digi+ vrm
– asus enhanced dram overcurrent protectión
– asus esd guards
– tuf languard
– asus overvoltage protectión
– asus safeslot
– asus stainless – steel back i – o
asus q – design
– asus q – dimm
– asus q – slot
asus thermal solutión
– aluminum heatsink design
asus ez diy
– bios flashback buttón
– bios flashback led
aura sync
– aura rgb header
puertos i – o traseros
1 x ps – 2 keyboard – mouse combo port(s)
1 x dvi – d
1 x hdmi
1 x lan (rj45) port(s)
1 x usb 3.2 gen 2 (teal blue)type – a –
2 x usb 3.2 gen 1 (blue) type – a
1 x usb 3.2 gen 1 (black) type – c
2 x usb 2.0
3 x audio jack(s)
1 x bios flashback buttón(s)
internal i – o
1 x cpu fan connector(s)
2 x chassis fan connector(s)
1 x aura rgb strip header
1 x usb 3.2 gen 1(up to 5gbps) connector(s) support(s) additiónal 2 usb 3.2
gen 1 port(s)
2 x usb 2.0 connector(s) support(s) additiónal 4 usb 2.0 port(s)
1 x m.2 socket 3 with m key – type 2242 – 2260 – 2280 – 22110 storage devices
support (sata & pcie 3.0 x 4 mode)
1 x spi tpm header
6 x sata 6gb – s connector(s)
1 x s – pdif out header(s)
1 x 24 – pin eatx power connector(s)
1 x 8 – pin eatx 12v power connectors
1 x front panel audio connector(s) (aafp)
1 x clear cmos jumper(s)
1 x system panel connector
1 x com port header
1 x speaker connector
accessorios
user´s manual
i – o shield
2 x sata 6gb – s cable(s)
1 x supporting dvd
1 x tuf gaming sticker
1 x tuf certificatión card(s)
1 x m.2 ssd screw package(s)
bios
256 mb flash rom – uefi ami bios
capacidad de gestión
wol by pxe
sistema operativo
windows® 10 64 – bit
windows® 7 64 – bit *2
factor de forma
matx form factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Comprar Placa Base Asus Amd Tuf Gaming MGS0000001138
MGS0000001138,90MB1620-M0EAY0,4718017927185
