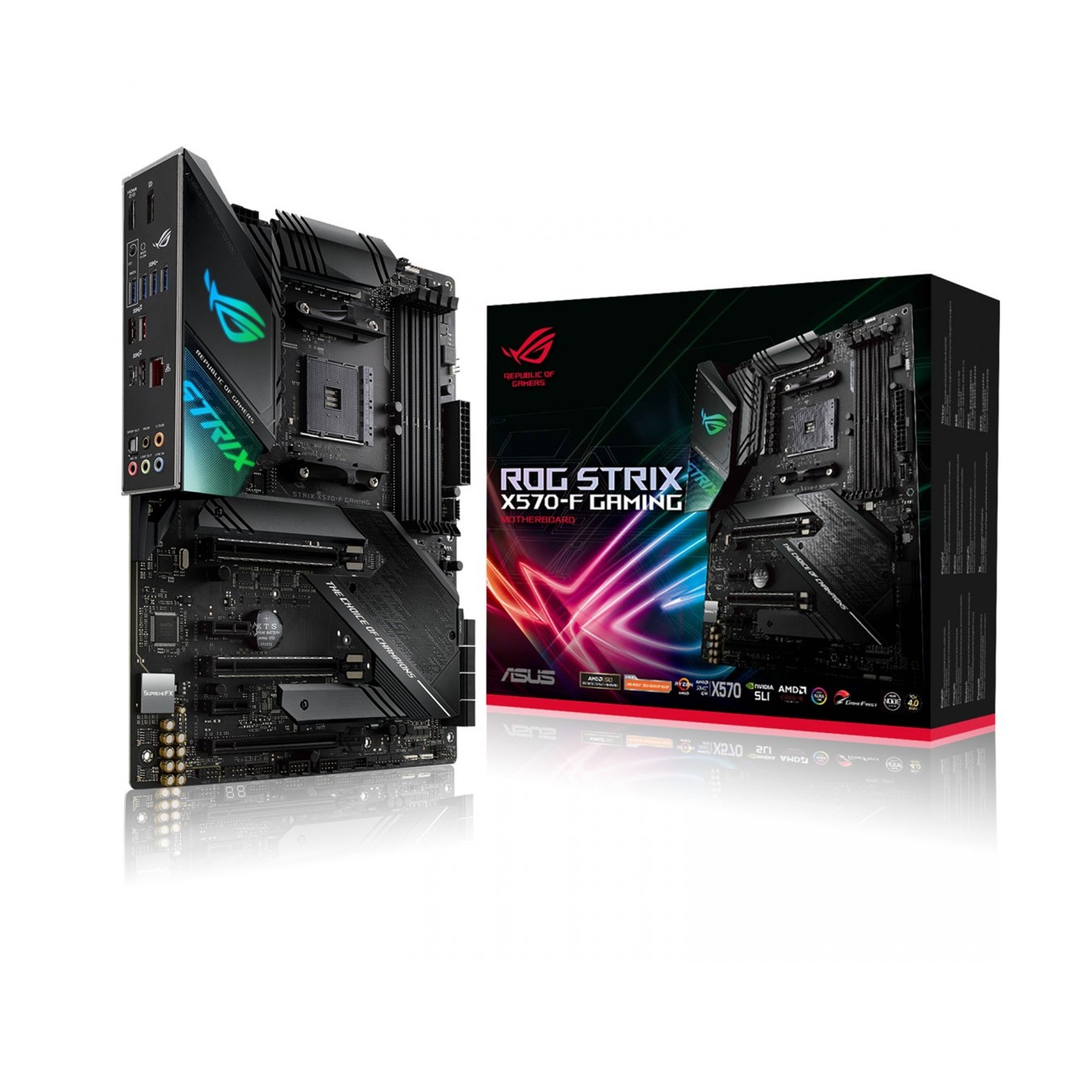

Placa Base Asus Amd Rog Strix STRIX-X570-F-G
Cpu
amd am4 socket 3rd and 2nd amd ryzen – 2nd and 1st gen amd ryzen
with radeon vega graphics processors
* refer to www.asus.com for cpu support list
chipset
amd x570
memoria
3rd gen amd ryzen processors
4 x dimm – max. 128gb – ddr4 mhz un – buffered memory *
2nd gen amd ryzen processors
4 x dimm – max. 128gb – ddr4 mhz un – buffered memory *
2nd and 1st gen amd ryzen with radeon vega graphics processors
4 x dimm – max. 128gb – ddr4 mhz un – buffered memory
dual channel memory architecture
* refer to www.asus.com for the memory qvl (qualified vendors lists).
gráfica
integrated graphics in the 2nd and 1st gen amd ryzen with radeon vega
graphics processors
multi – vga output support : hdmi – displayport ports
– supports hdmi 2.0b with maximum resolutión of 4096 x 2160 @ 60 hz
– supports displayport 1.2 with max. resolutión 4096 x 2160 @ 60 hz
compatible multi – gpu
3rd and 2nd gen amd ryzen processors
supports nvidia® 2 – way sli® technology
supports amd 3 – way crossfirex technology
2nd and 1st gen amd ryzen with radeon vega graphics processors
supports amd 2 – way crossfirex technology
ranuras de expansión
3rd gen amd ryzen processors
2 x pcie 4.0 x16 (x16 or dual x8)
2nd gen amd ryzen processors
2 x pcie 3.0 x16 (x16 or dual x8)
2nd and 1st gen amd ryzen with radeon vega graphics processors
1 x pcie 3.0 x16 (x8 mode)
amd x570 chipset
1 x pcie 4.0 x16 (max at x4 mode) *1
2 x pcie 4.0 x1
almacenamiento
3rd gen amd ryzen processors :
1 x m.2 socket 3 – with m key – type 2242 – 2260 – 2280 – 22110(pcie 4.0 x4 and
sata modes) storage devices support
2nd gen amd ryzen – 2nd and 1st gen amd ryzen with radeon vega
graphics processors :
1 x m.2 socket 3 – with m key – type 2242 – 2260 – 2280 – 22110(pcie 3.0 x4 and
sata modes) storage devices support
amd x570 chipset :
1 x m.2 x4 socket 3 – with m key – type 2242 – 2260 – 2280 – 22110(pcie 4.0 x4 and
sata modes) storage devices support
8 x sata 6gb – s port(s) –
support raid 0 – 1 – 10
red
intel® i211 – at – 1 x gigabit lan controller(s)
anti – surge languard
rog gamefirst technology
audio
supremefx 8 – channel high definitión audio codec s1220a
– dual op amplifiers
– impedance sense for front and rear headphone outputs
– supports : jack – detectión – multi – streaming – front panel jack – retasking
– high quality 120 db snr stereo playback output and 113 db snr recording
input
– supremefx shielding technology
– supports up to 32 – bit – 192khz playback *2
audio feature :
– optical s – pdif out port(s) at back panel
– sonic radar iii
– sonic studio iii + sonic studio link
puertos usb
3rd and 2nd gen amd ryzen – 2nd and 1st gen amd ryzen with radeon
vega graphics processors :
4 x usb 3.2 gen 1 port(s) (4 at back panel – )
amd x570 chipset :
1 x usb 3.2 gen 2 front panel connector port(s)
amd x570 chipset :
4 x usb 3.2 gen 2 port(s) (4 at back panel – – 3 x type – a+1 x type – c)
amd x570 chipset :
2 x usb 3.2 gen 1 port(s) (2 at mid – board)
amd x570 chipset :
4 x usb 2.0 port(s) (4 at mid – board)
funciónes overclocking
rog exclusive software
– ramcache iii
– cpu – z
– gamefirst v
– sonic studio iii + sonic studio link
– sonic radar iii
– overwolf
características especiales
5 – way optimizatión by dual intelligent processors 5
– whole system optimizatión with a single click! 5 – way optimizatión tuning
key perfectly consolidates tpu – epu – digi+ vrm – fan xpert 4 – and turbo app
together – providing better cpu performance – efficient power saving – precise
digital power control – whole system cooling and even tailor your own app
usages.
tpu
– auto tuning – turbov – gpu boost
gamer’s guardian:
– dram overcurrent protectión
– stainless steel back i – o
– highly durable components
– digi+ vrm
– safeslot
– esd guards on lan – audio -and usb ports
asus epu :
– epu
aura :
– aura lighting control
– addressable gen 2 header
asus exclusive features :
– usb bios flashback®
– ai suite 3
– ai charger
– asus node : hardware control interface
– bios flashback® buttón
asus ez diy :
– asus crashfree bios 3
– asus ez flash 3
asus q – design :
– asus q – led (cpu – dram – vga – boot device led)
– asus q – slot
– asus q – dimm
gaming aesthetics :
– aura – rgb lighting
e – s panel trasero
1 x displayport
1 x hdmi
5 x usb 3.1 gen 1 type – a
8 x usb 2.0
1 x optical s – pdif out
5 x audio jack(s)
1 x usb bios flashback® buttón(s)
4 x usb 3.2 gen 1 (up to 5gbps) ports
3 x usb 3.2 gen 2 (up to 10gbps) ports (type – a)
1 x usb 3.2 gen 2 (up to 10gbps) ports (type – c)
anti – surge lan (rj45) port
e – s internas
1 x pch_fan
1 x aafp connector
2 x aura rgb strip header(s)
2 x addressable gen 2 header(s)
2 x usb 2.0 connector(s) support(s) additiónal 4 usb 2.0 port(s)
2 x m.2 socket 3 with m key – type 2242 – 2260 – 2280 – 22110 storage devices
support
1 x spi tpm header
8 x sata 6gb – s connector(s)
1 x cpu fan connector(s)
1 x cpu opt fan connector(s)
2 x chassis fan connector(s)
1 x aio_pump connector
1 x w_pump+ connector
1 x 24 – pin eatx power connector(s)
1 x 8 – pin atx 12v power connector(s)
1 x 4 – pin atx 12v power connector(s)
1 x front panel audio connector(s) (aafp)
1 x thermal sensor connector(s)
1 x clear cmos jumper(s)
1 x node connector(s)
1 x system panel connector
1 x t_sensor connector
1 x m.2 fan header
1 x usb 3.2 gen 2 (up to 10gbps) connector
1 x usb 3.2 gen 1 (up to 5gbps) connector support additiónal 2 usb ports
accesorios
user’s manual
4 x sata 6gb – s cable(s)
1 x m.2 screw package
1 x supporting dvd
1 x strix door hanger
1 x rog strix stickers
1 x cable ties pack(s)
1 x extensión cable for rgb strips (80 cm)
1 x extensión cable for addressable led
1 x thermistor cable(s)
1 x rog thank you card
bios
256 mb flash rom – uefi ami bios – pnp – wfm2.0 – sm bios 3.2 – acpi 6.2.
capacidad de gestión
wol – pxe
disco de soporte
overwolf
anti – virus software (oem versión)
winrar
sistema operativo
windows® 10 64 – bit
formato de fábrica
atx form factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
notas
*1 pciex16_3 slot shares bandwidth with pciex1_2.
*2 due to limitatións in hda bandwidth – 32 – bit – 192khz is not supported for 8 –
channel audio.
