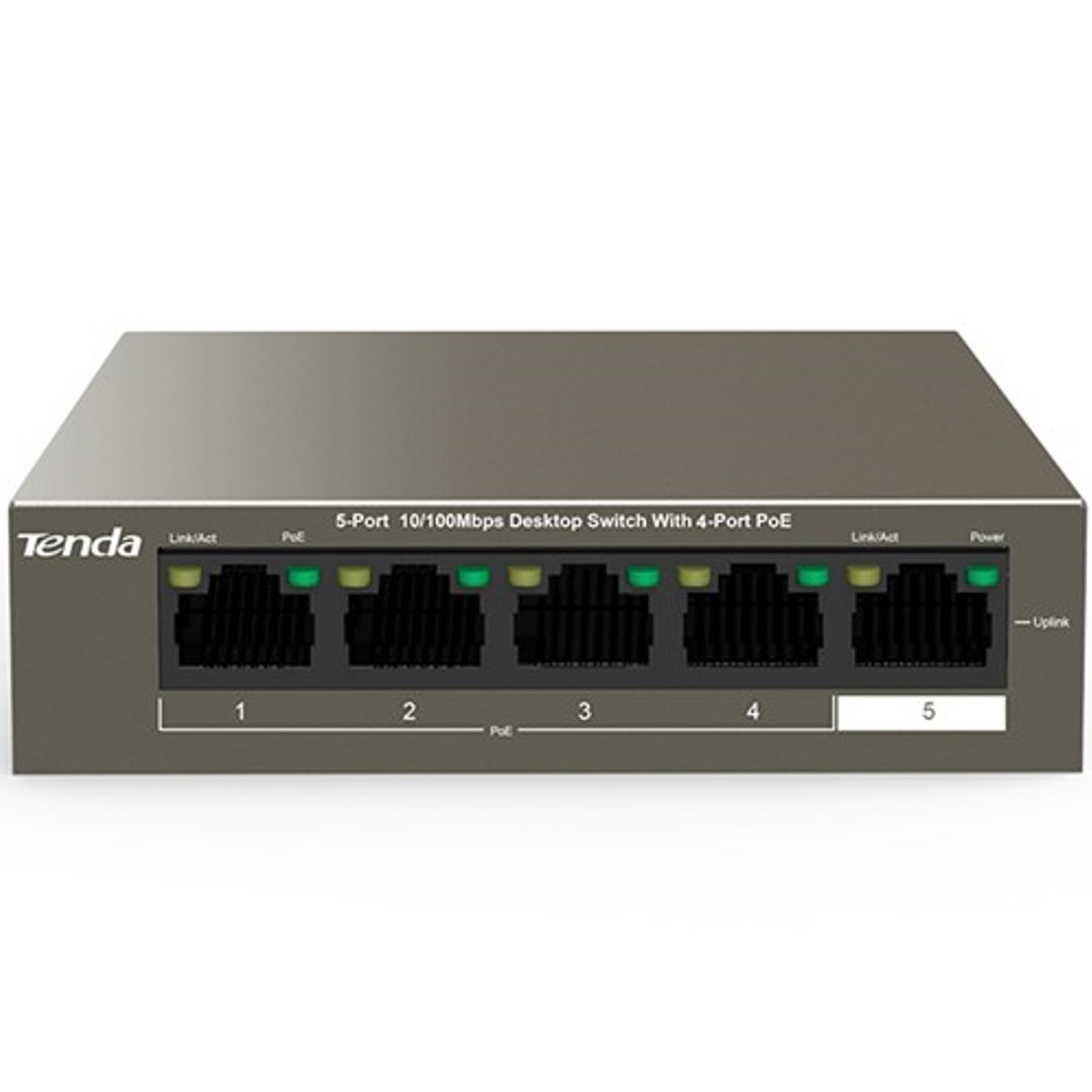

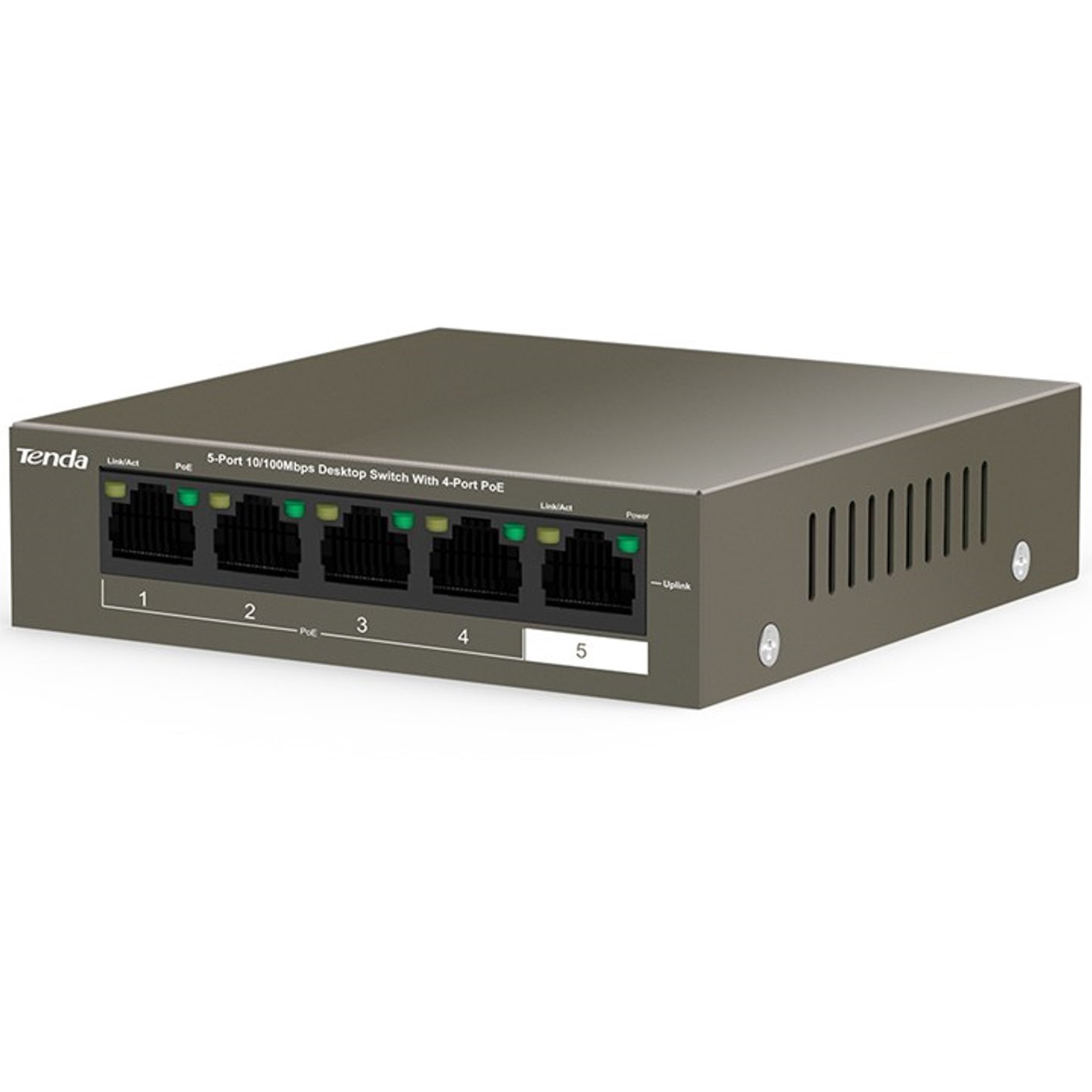

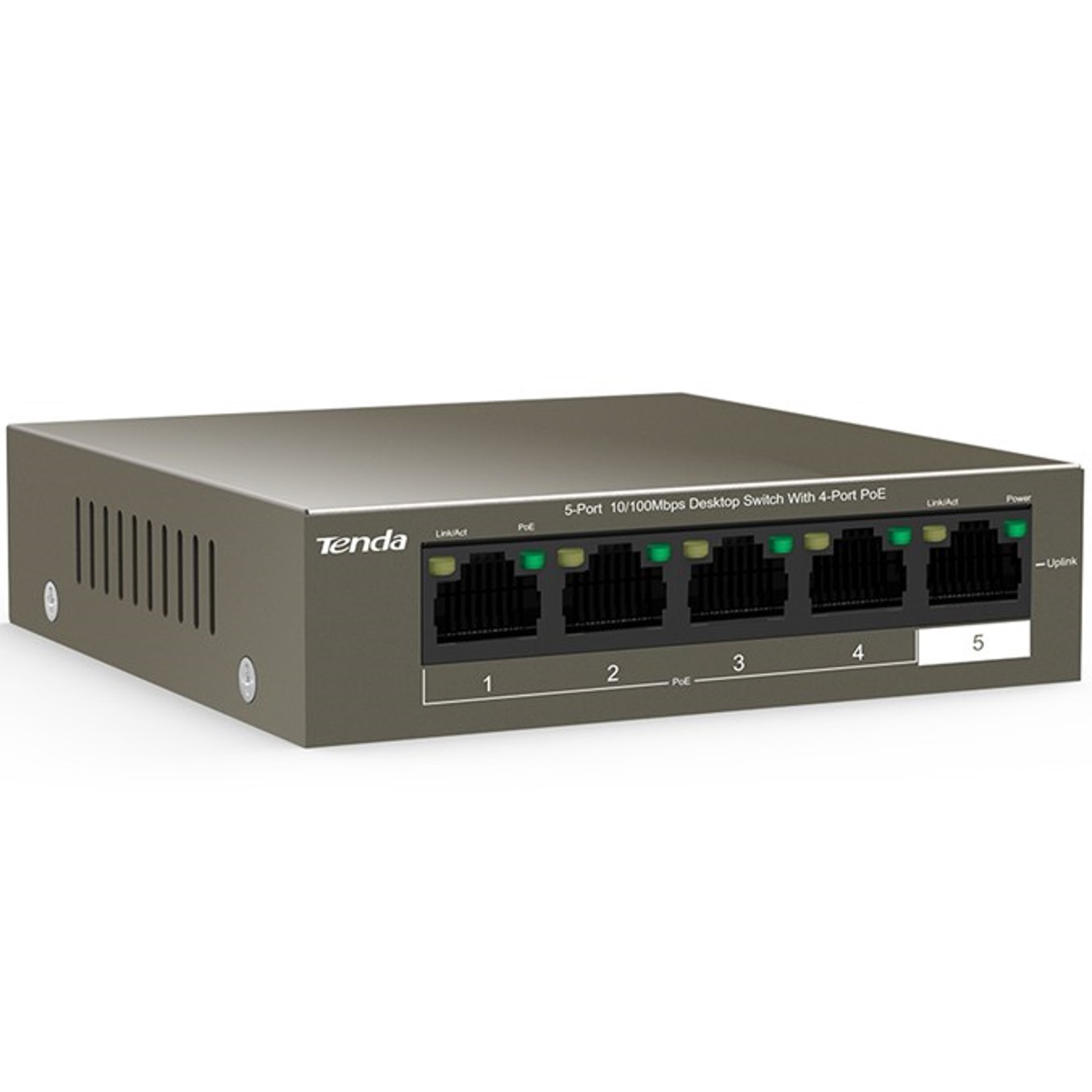

Switch 5 Puertos (4 Puertos Poe) TEF1105P-4-63WV2-0
Estándar y protocolo
ieee 802.3ieee 802.3uieee 802.3abieee 802.3af
indicadores
5*link – act per device
4*poe per device
1*power per device
interfaz
4 10 – 100base – tx ports(data – power)
1 10 – 100base – tx port(data)
puertos
lightning protectión: 6kv
almacenamiento y retransmisión
yes
capacidad de intercambio
1 gbps
contenido del paquete
0.744mpps
tabla de direcciónes mac
1k
administración de alimentación poe
port 1 – 4 support ieee802.3af poe standard
poe through pin
1 2 4 5 +3 6 7 8 –
entrada de alimentación
ac100 – 240v50 – 60hz
dimensiónes
100*100*26mm( w x d x h )
consumo de potencia
in full configuratión<38w
poe max power supply35w
características de los puertos
standard: the switch functións as a common unmanaged switch and all the
ports of the switch can communicate with each other.

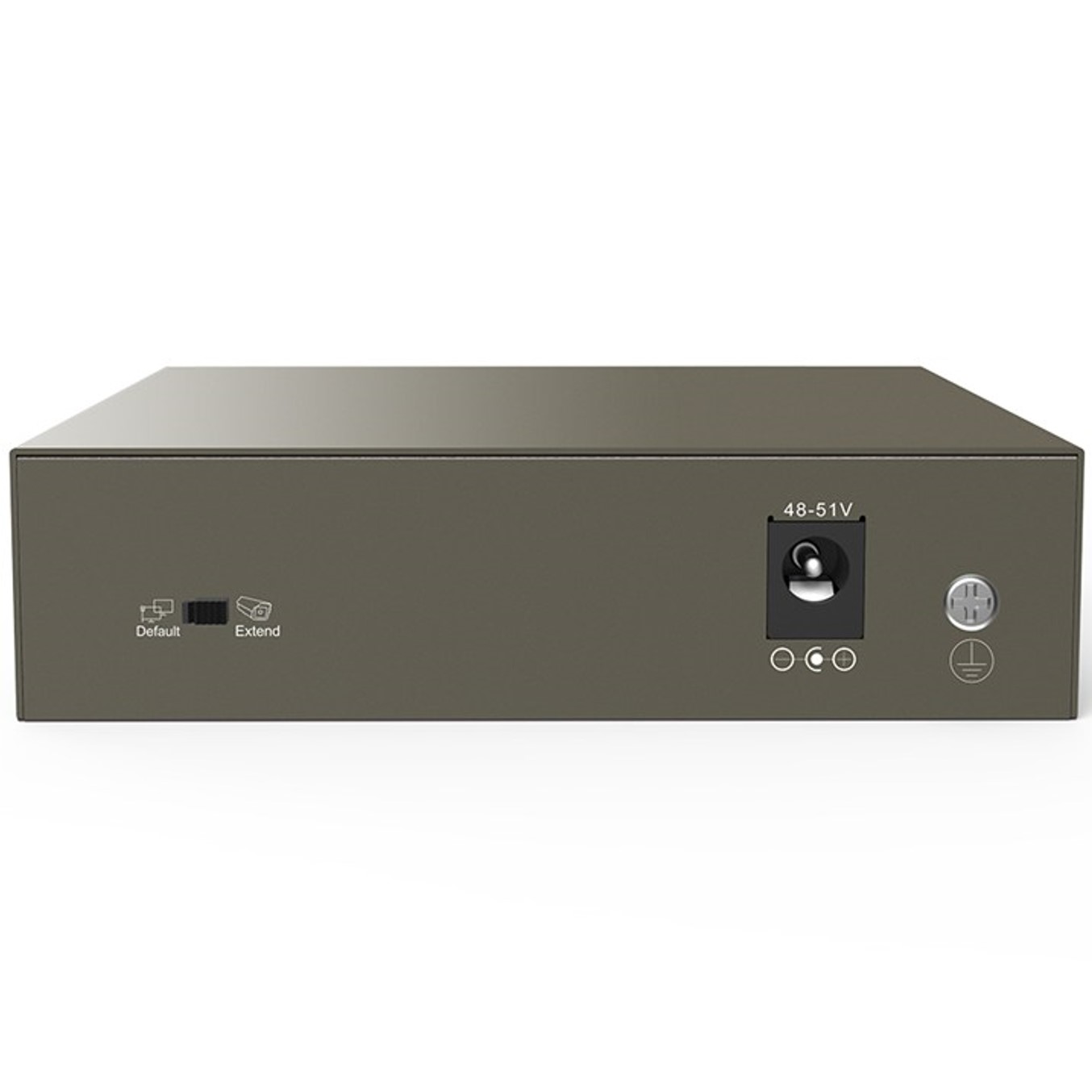

extend mode: if extend mode is enabled – port 1 – 4 will be isolated respectively
(10mbps auto – negotíatión).and the delivery distance of powering and network
data is up to 250m (10mbps).
entorno
operating temperature: 0~40 (32~104)
storage temperature: – 40~70 ( – 40~158)
operating humidity: 10%~90% non – condensing
storage humidity: 5%~90% non – condensing
Comprar Switch 5 Puertos (4 Puertos Poe) TEF1105P-4-63WV2-0
TEF1105P-4-63WV2-0,TEF1105P-4-63WV2.0,6932849431124
