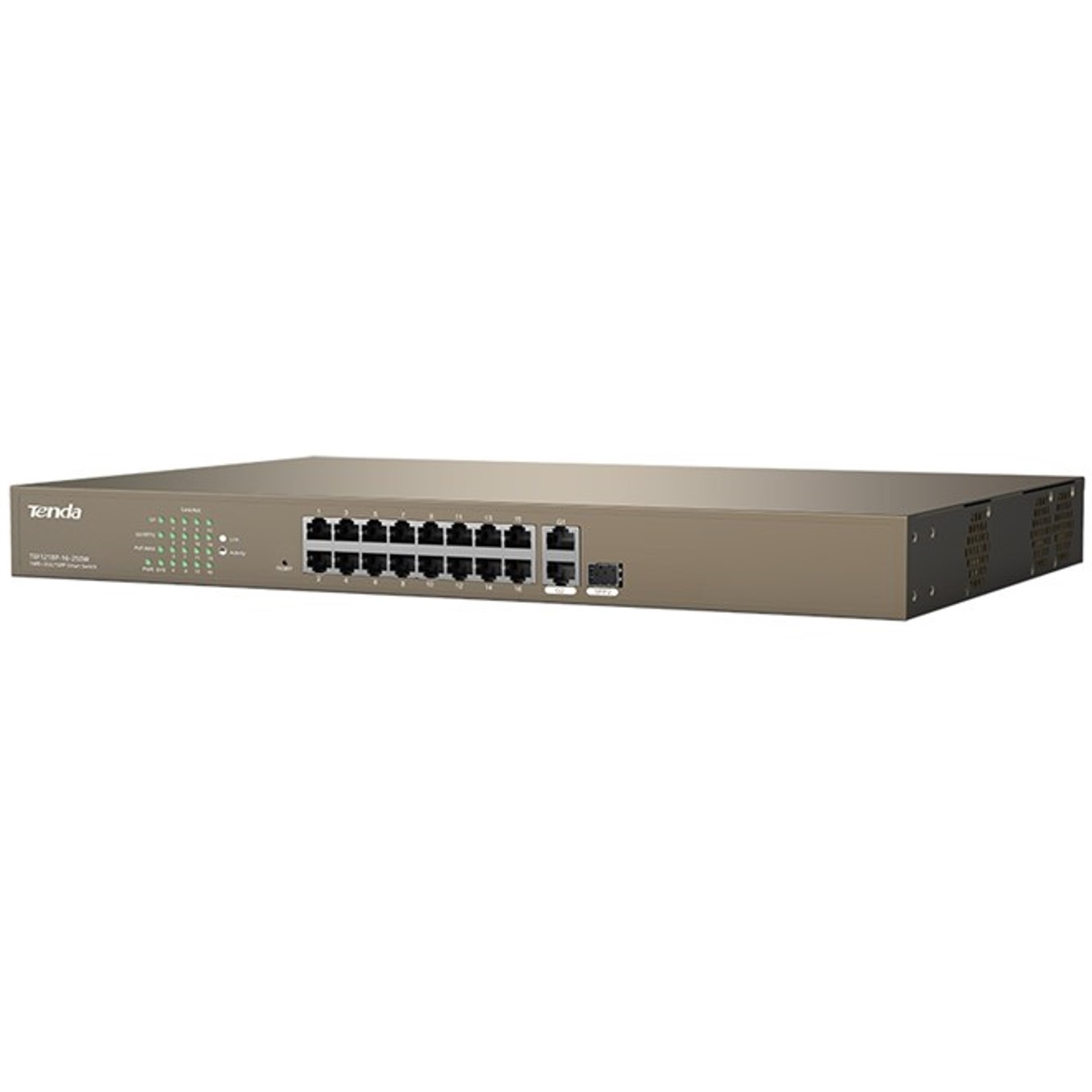

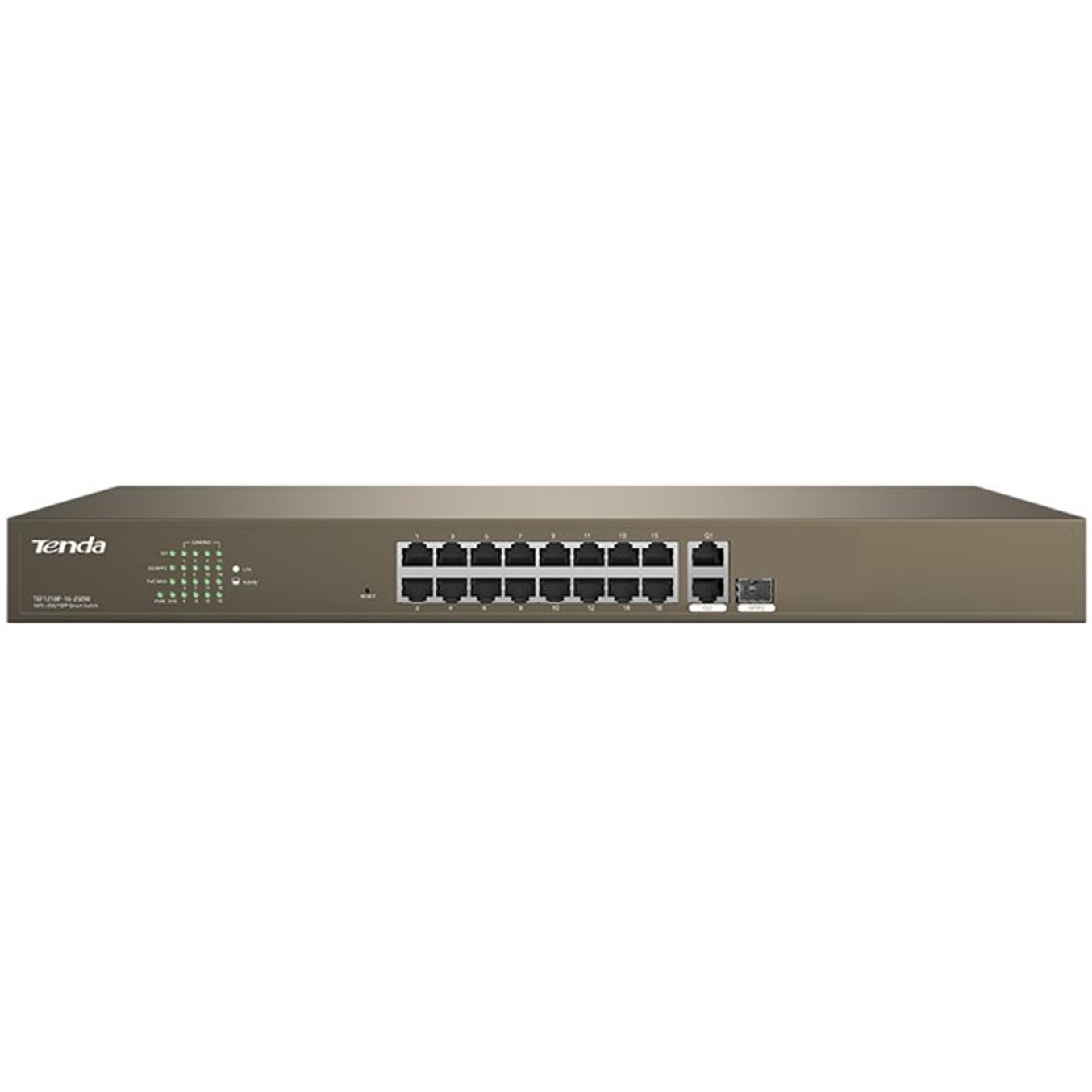

Switch 16 Puertos Fe 2 Puertos TEF1218P-16-250W
Estándar y protocolo
ieee802.3 – ieee802.3u – ieee802.3ab – ieee802.3z – ieee802.3x -ieee802.1p –
ieee802.1q – ieee802.1w – ieee802.3af – at
led
16 * link – act leds
1 * g1 led
1 * g2 – sfp2 led
1 * poe – max led
1 * power led
1 * sys led
interfaz
16 * 10 – 100 mbps base – tx rj45 ports (data – power)
2 * 10 – 100 – 1000 mbps base – t rj45 ports (data)
1 * 10 – 100 – 1000 mbps base – x sfp port (combo)
velocidad de reenvío
5.36 mpps
capacidad de conmutación
7.2 gbps
tabla de direcciónes mac
4k
protección contra rayos
6kv
voltaje de entrada
ac: 100 – 240v~50 – 60hz
poe supply
ports 1 – 16 support standard ieee802.3af – at
30w output per poe port
230w output of the total poe power
consumo de potencia
250w output the whole device
dimensiónes
440*178.8*44mm
entorno
operating temperature: 0~45 (32~113)
storage temperature: – 40~70 ( – 40~158)
operating humidity: 10%~90% non – condensing
storage humidity: 5%~90% non – condensing
pon connector
support over temperature protectión for poe module
support graphical management detectión of pd equipment
vlan
supports port vlan
supports 802.1q vlan
seguridad
mac – port binding
agregación de vínculos
static trunk supports 3 groups of 4 – port trunk support
stp
stp – rstp
supervisión de igmp
igmp (v1 – v2) snooping
creación de reflejos de puertos
n: 1 port mirroring
qos
802.1p and dscp priority re – marking
flow control
flexible queue scheduling algorithm can be set
based on port and queue – support sp – wrr
firmware upgrade
upgrade via the web
administración
support snmp v1 – v2 and web – based management
certificaciónes
cccfcccerohs
Comprar Switch 16 Puertos Fe 2 Puertos TEF1218P-16-250W
TEF1218P-16-250W,,6932849431209
