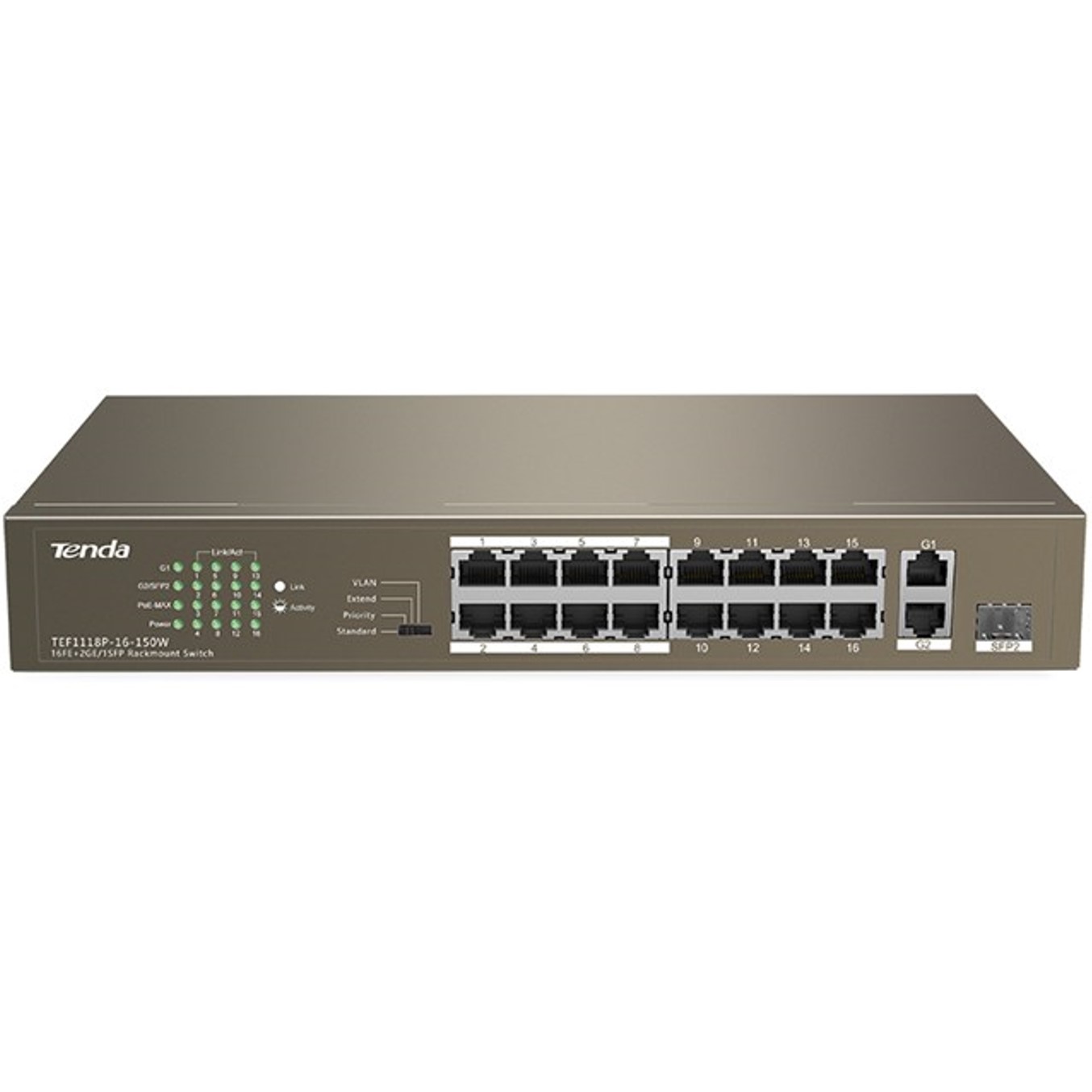

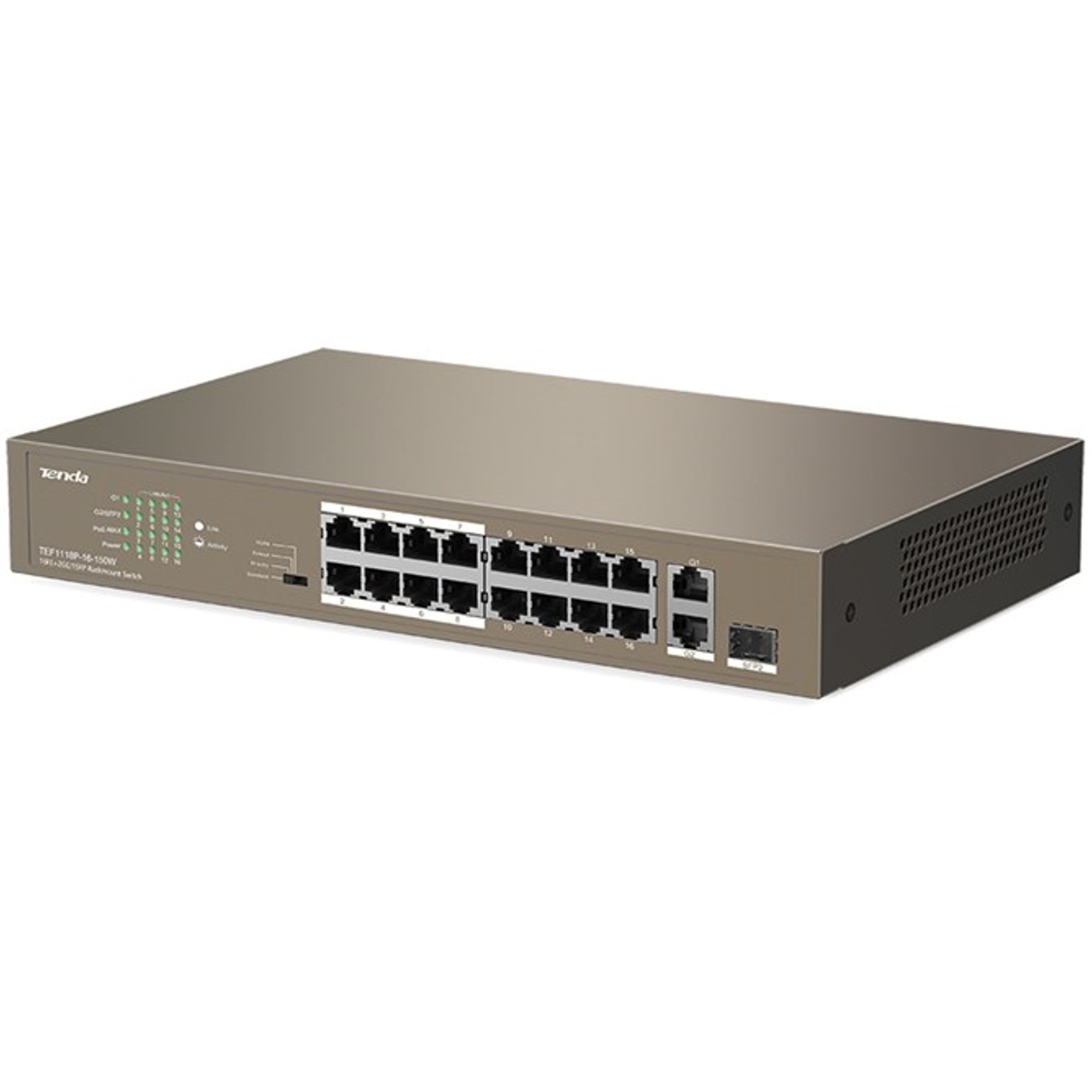

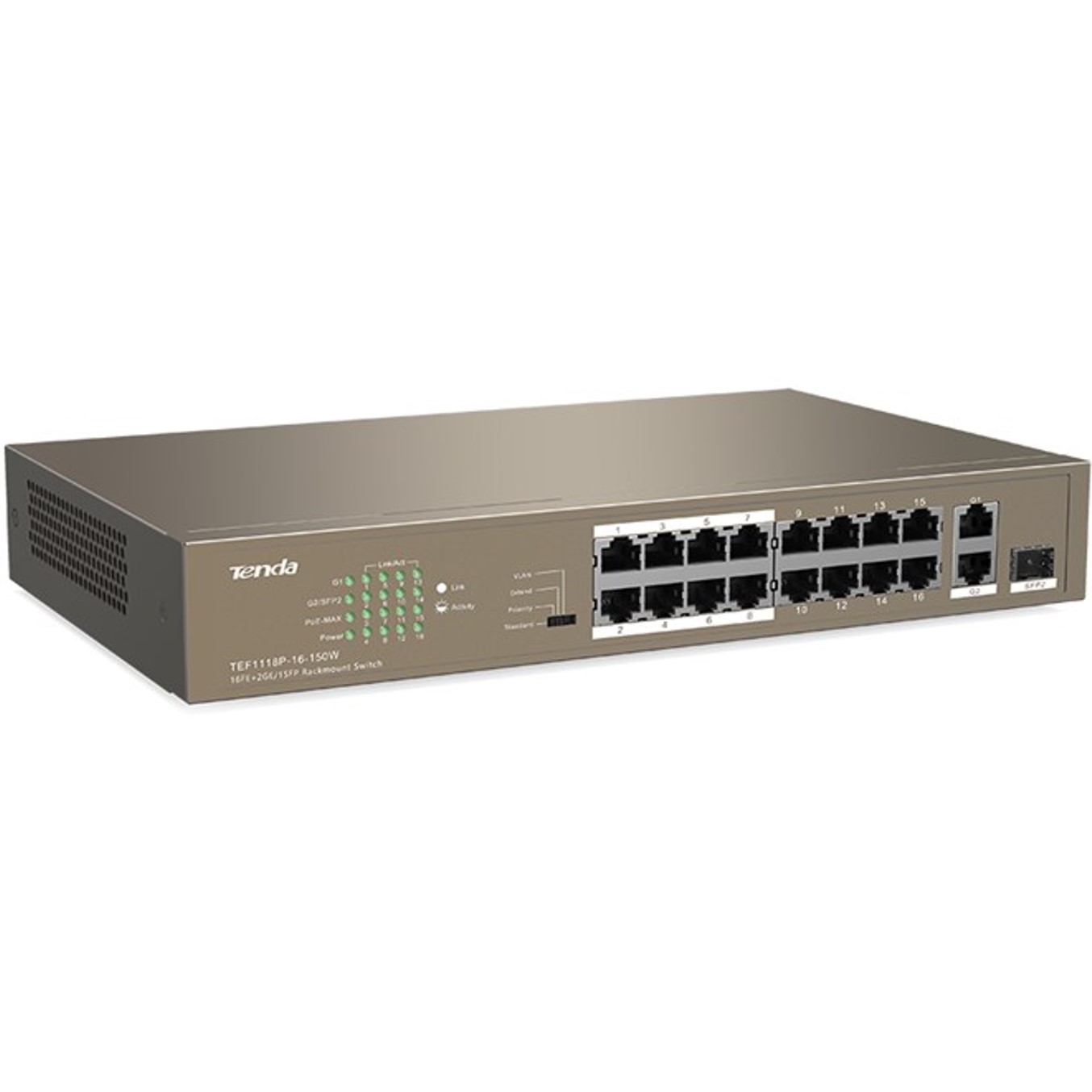

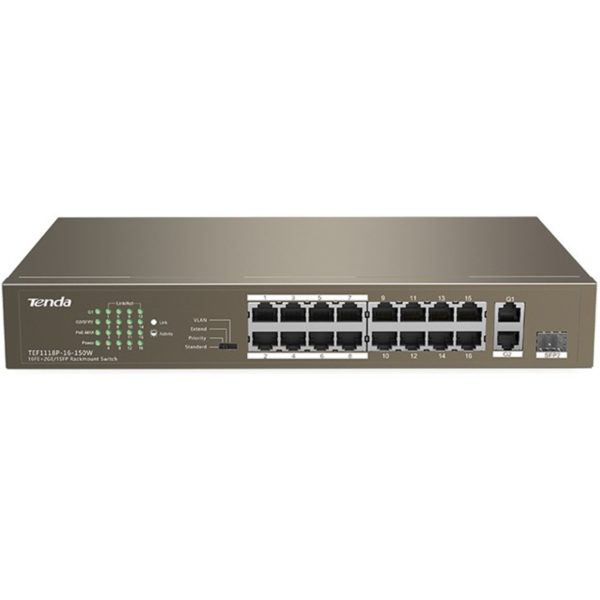

Switch 16 Puertos 10 100 Tenda TEF1118P-16-150W
Estándar y protocolo
ieee802.3 – ieee802.3u – ieee802.3ab – ieee802.3z – ieee802.3x – ieee802.3af – at
led
16 * link – act leds
1 * g1 led
1 * g2 – sfp2 led
1 * poe – max led
1 * power led
interfaz
16 * 10 – 100 mbps base – tx rj45 ports (data – power)
2 * 10 – 100 – 1000 mbps base – t rj45 ports (data)
1 * 10 – 100 – 1000 mbps base – x sfp port (combo)
velocidad de reenvío
5.36 mpps
capacidad de conmutación
7.2 gbps
tabla de direcciónes mac
4k
protección contra rayos
6kv
voltaje de entrada

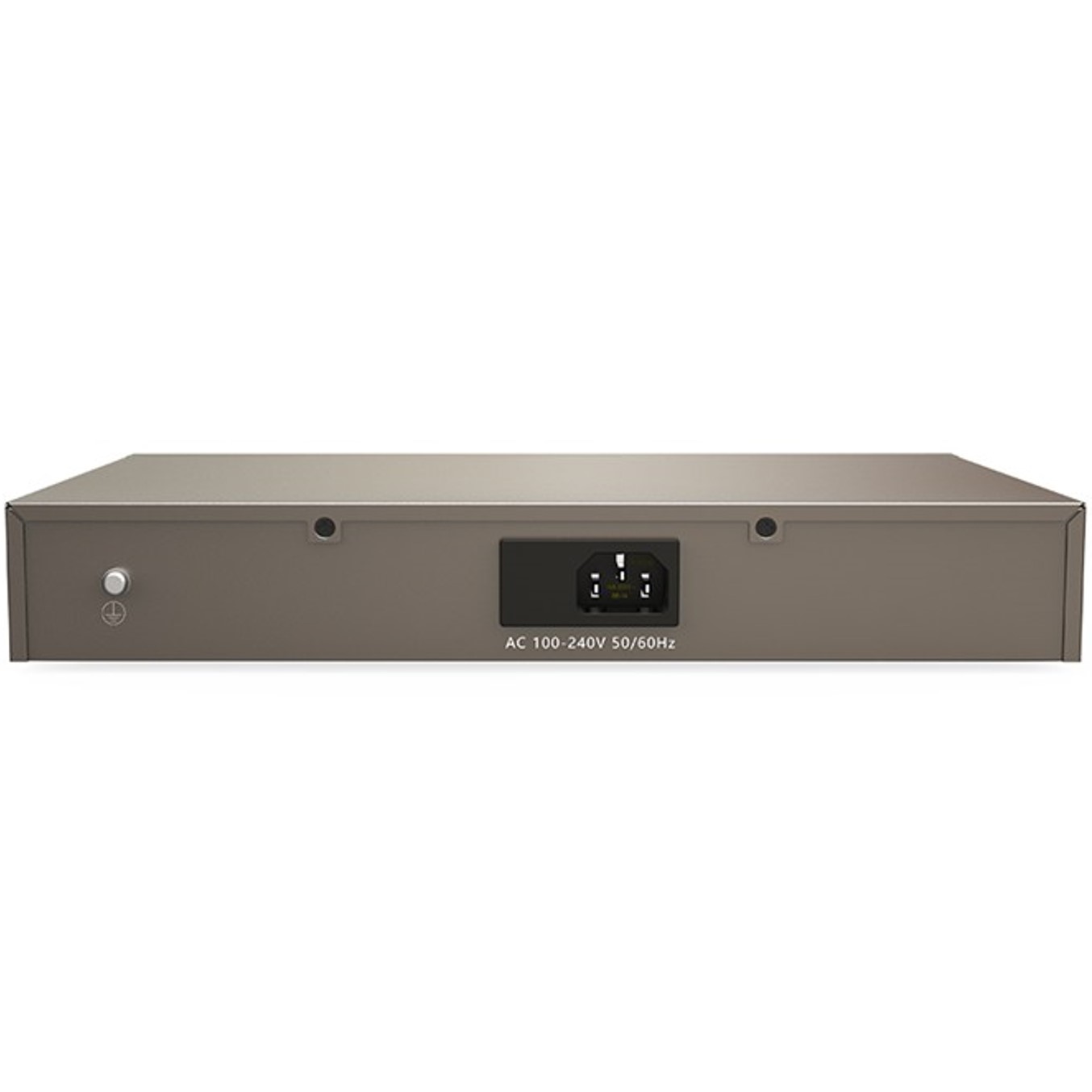

ac: 100 – 240v~50 – 60hz
poe supply
ports 1 – 16 support standard ieee802.3af – at
30w output per poe port
130w output of the total poe power
consumo de potencia
150w output the whole device
dimensiónes
294*178.8*44mm
uplink port copper
standard: default mode of the switch. in this mode – it works as an
unmanaged switch
all ports can communicate with each other separately.
priority: in this mode – port g1 and g2 – sfp2 serve as uplink ports – ports 1 8
serve as high priority port. all ports can communicate with each other
separately.extend: in this mode – data rate of ports 9 – 16 reduces to 10 mbps –
the maximum transmissión distance can be 250 meters – and all ports can
communicate with each other.
vlan: in this mode – ports 1 – 16 of the switch can communicate with port g1 –
g2 – sfp2 separately – but cannot communicate with each other. you can enable
this mode to reduce broadcast storm and isolate dhcp broadcast.
entorno
operating temperature: 0~45 (32~113)
storage temperature: – 40~70 ( – 40~158)
operating humidity: 10%~90% non – condensing
storage humidity: 5%~90% non – condensing
certificaciónes
cccfcccerohs
