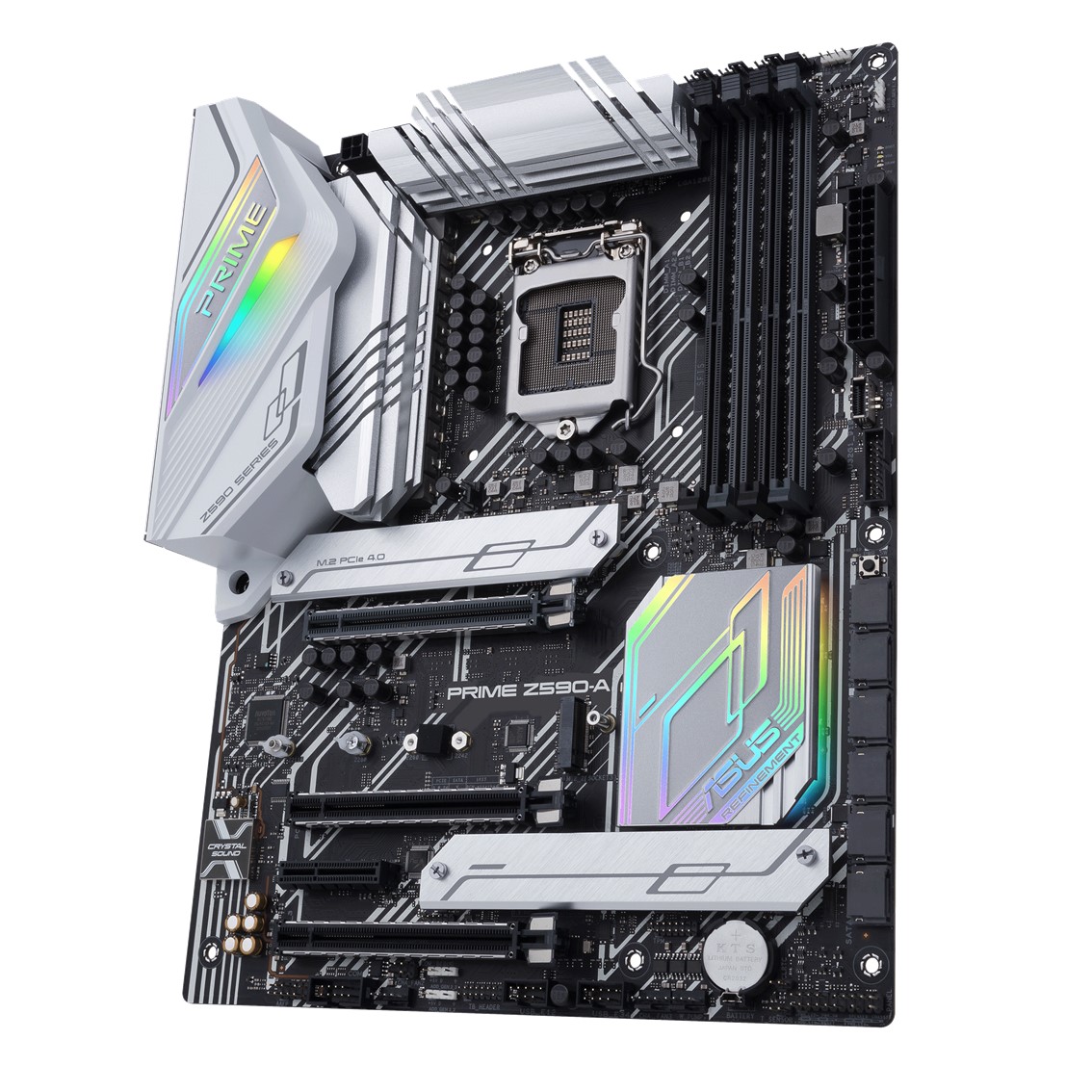

Placa Base Asus Intel Prime Z590 – A Socket 1200 Ddr4 X4 Max 128Gb 3200Mhz Display Port Hdmi Atx

Placa Base Asus Intel Prime Z590 – A MGS0000001885

Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu

supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**

* refer to www.asus.com for cpu support list.

** intel® turbo boost max technology 3.0 support depends on the cpu
types.

chipset
intel® z590 chipset
memory
memory channels:4ddr4 (dual channel)
max memory size:128gb
4 x dimm – max. 128gb – ddr4 5333(oc) – 5133(oc) – 5000(oc) – 4800(oc) – 4700
(oc) – 4600(oc) – 4500(oc) – 4400(oc) – 4266(oc) – 4133(oc) – 4000(oc) – 3866
(oc) – 3733(oc) – 3600(oc) – 3466(oc) – 3400(oc) – 3333
(oc) – 3200 – 3000 – 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un – buffered
memory*

dual channel memory architecture

supports intel® extreme memory profile (xmp)

optimem ii

* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum
transfer rate of ddr4 2666mhz.

* 11th gen intel® core processors support
3200 – 2933 – 2800 – 2666 – 2400 – 2133 natively.

* refer to www.asus.com for the memory qvl (qualified vendors lists) –
and memory frequency support depends on the cpu types.

graphics
1 x displayport 1.4**
1 x hdmi 2.0**
expansión slots
3 x pcie 4.0 – 3.0 x16 (x16 – x8 – x4 – x4)
intel® 11th & 10th gen processors

3 x pcie 4.0 – 3.0 x16 slots*

– intel® 11th core processors support pcie 4.0 x16

– intel®10th processors support pcie 3.0 x16

intel® z590 chipset

1 x pcie 3.0 x4 slot

* supports pcie bandwidth bifurcatión for raid on cpu functión.

storage
supports 3 x m.2 slots and 6 x sata 6gb – s ports
total supports 3 x m.2 slots and 6 x sata 6gb – s ports

intel®11th gen processors

m.2_1 slot (key m) – type 2242 – 2260 – 2280 – 22110

– only intel® 11th core processors support pcie 4.0 x4 mode – this slot
will be disabled for other cpus

intel® z590 chipset

m.2_2 slot (key m) – type 2242 – 2260 – 2280 – 22110 (supports pcie 3.0 x4 &
sata modes)***

m.2_3 slot (key m) – type 2242 – 2260 – 22110 (supports pcie 3.0 x4 & sata
modes)****

6 x sata 6gb – s ports

*raid functión for pcie mode ssd in intel® rapid storage technology is
available with either 1. intel® ssds installed in both cpu – attached and
pch – attached slots – or 2. any other 3rd party ssds installed in pch –
attached slots.

** to enable intel® optane memory (hybrid storage device) – it must be
installed in pch – attached slots with intel® rapid storage technology.

*** m.2_2 shares bandwidth with sata6g_2. when m.2_2 runs sata
mode – sata6g_2 will be disabled.

**** m.2_3 shares bandwidth with sata6g_6. when m.2_6 runs sata
mode – sata6g_6 will be disabled.

ethernet
1 x intel® 2.5gb ethernet
usb
rear usb:total 9 ports

rear usb (total 9 ports)

1 x usb 3.2 gen 2×2 port (1 x usb type – c®)

4 x usb 3.2 gen 2 ports (3 x type – a – 1 x type – c®)

4 x usb 2.0 ports (4 x type – a)

front usb (total 7 ports)

1 x usb 3.2 gen 1 connector (suppports usb type – c®)

1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

front usb:total 7 ports
audio
rog supremefx 7.1 – channel high definitión audio codec s1220a
realtek s1220a 7.1 surround sound high definitión audio codec*

– impedance sense for front and rear headphone outputs

– internal audio amplifier to enhance the highest quality sound for
headphone and speakers

– supports: jack – detectión – multi – streaming – front panel jack – retasking

– high quality 120 db snr stereo playback output and 113 db snr
recording input (line – in)

– supports up to 32 – bit – 192 khz playback*pulgadas

audio features:

– power pre – regulator reduces power input noise to ensure consistent
performance

– rear optical s – pdif out port

– premium japanese audio capacitors

– audio shielding

– dedicated audio pcb layers

– audio cover

– unique de – pop circuit

* due to limitatións in hda bandwidth – 32 – bit – 192khz is not supported for 8
– channel audio.

back panel i – o ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
4 x usb 3.2 gen 2 ports (3 x type – a – 1 x type – c®)
4 x usb 2.0 ports (4 x type – a)
1 x displayport
1 x hdmi port
1 x intel® i225 – v 2.5gb ethernet port
5 x audio jacks
1 x optical s – pdif out port
intrernal i – o connectors
1 x thunderbolt 4 header
fan and cooling related

1 x 4 – pin cpu fan header

1 x 4 – pin cpu opt fan header

1 x 4 – pin aio pump header

3 x 4 – pin chassis fan headers

1 x 4 – pin vrm_hs fan header

1 x w_pump+ header

power related

1 x 24 – pin main power connector

1 x 8 – pin +12v power connector

1 x 4 – pin +12v power connector

storage related

3 x m.2 slots (key m)

6 x sata 6gb – s ports

usb

1 x usb 3.2 gen 1 connector (supports usb type – c®)

1 x usb 3.2 gen 1 headers supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

miscellaneous

3 x aura addressable gen 2 headers

1 x aura rgb headers

1 x clear cmos header

1 x com port header

1 x front panel audio header (aafp)

1 x cpu over voltage jumper

1 x power buttón

1 x spi tpm header (14 – 1pin)

1 x 20 – 3 pin system panel header with chassis intrude functión

1 x thermal sensor header

1 x thunderbolt header

special features

asus 5x protection iii

– asus digi+ vrm ( – digital power design with dr. mos)

– asus enhanced dram overcurrent protectión

– asus esd guards

– asus languard

– asus overvoltage protectión

– asus stainless – steel back i – o

asus q – design :

– m.2 q – latch

– asus q – connector

– asus q – dimm

– asus q – led (cpu [red] – dram [yellow] – vga [white] – boot device
[yellow – green])

– asus q – slot

asus thermal solutión:

– aluminum m.2 heatsink

– flexible m.2 heatsink

asus ez diy:

– procool

– pre – mounted i – o shield

– asus safeslot

software features
asus exclusive software:

armoury crate:

– aura creator

– aura sync

– two – way ai noise cancelatión

ai suite 3

– 5 – way optimizatión with ai overclocking

tpu

epu

digi+ vrm

fan xpert 4

turbo app

– ez update

ai charger

asus cpu – z

asus turbo lan

myasus

dts:x® ultra

uefi bios:

ai overclocking guide

asus ez diy :

– asus crashfree bios 3

– asus ez flash 3

– asus uefi bios ez mode

– ez tuning wizard

flexkey

bios
256 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables

3 x sata 6gb – s cables

miscellaneous

2 x m.2 rubber packages

1 x q – connector

installatión media

1 x support dvd

documentatión

1 x user manual

operating system
windows 10 64bit
form factor
atx
30.5cm x 24.4cm

Comprar Placa Base Asus Intel Prime Z590 – A MGS0000001885

MGS0000001885,90MB16D0-M0EAY0,4711081103868
