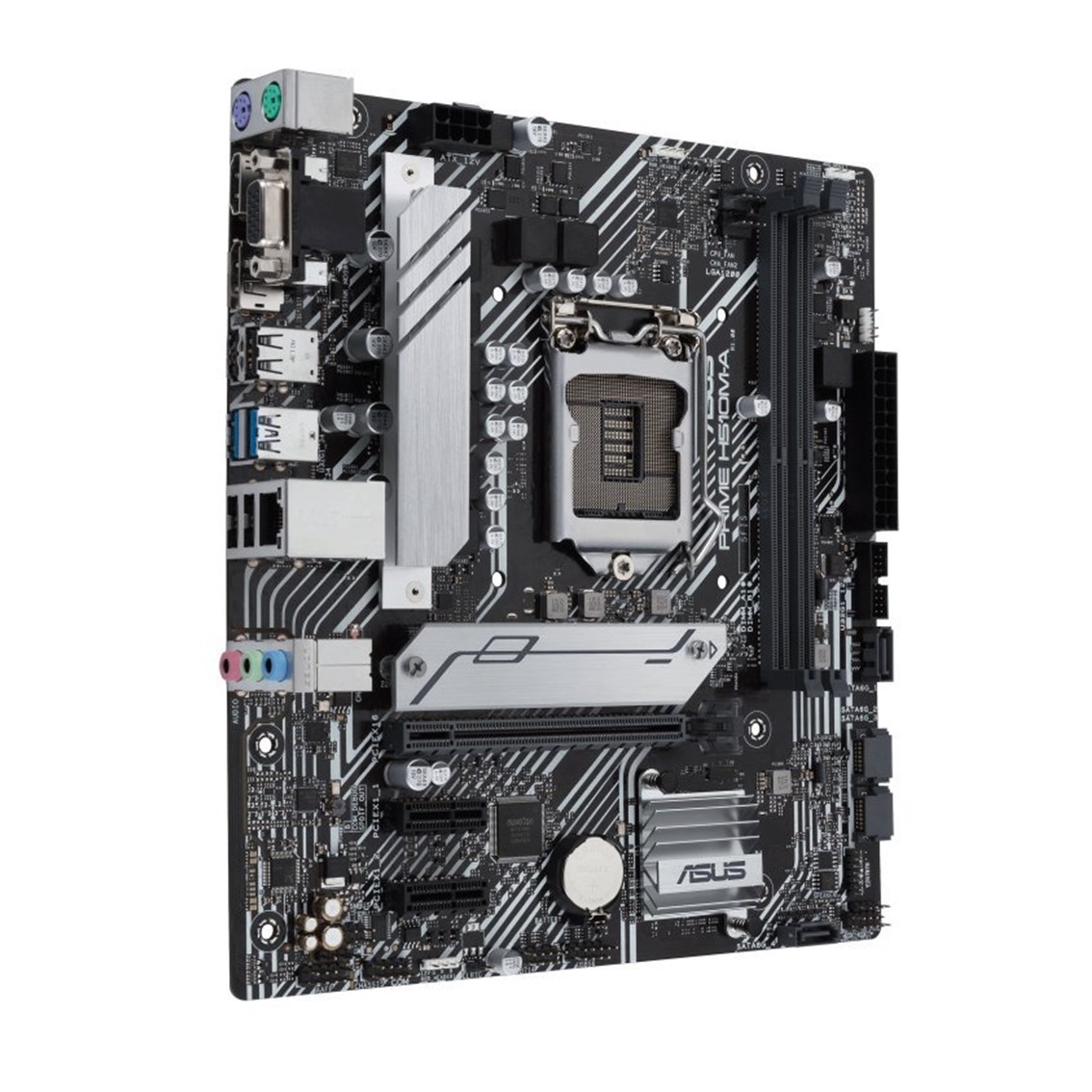

Placa Base Asus Intel Prime H510M – A Socket 1200 Ddr4 X2 Max 64Gb 2933Mhz Display Port D – Sub Hdmi Matx

Placa Base Asus Intel Prime H510M – A MGS0000002017

Intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
h510
memory
memory channels:2ddr4 (dual channel)
max memory size:64gb
ddr4 3200(oc) – 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un – buffered
memory*

dual channel memory architecture

supports intel® extreme memory profile (xmp)

* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.

* 11th gen intel® processors support 2933 – 2800 – 2666 – 2400 – 2133 natively.

* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.

graphics
1 x displayport 1.4**
1 x d – sub
1 x hdmi 2.0***
* graphics specificatións may vary between cpu types.
** intel® 11th & 10th gen processors support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
update.

*** only intel® 11th gen processors support hdmi 2.0 with max. resolutión
of 4k@60hz – others will only support hdmi 1.4 with max. resolutión of
4k@30hz. please refer to www.intel.com for any updates.

expansión slots
intel® 11th & 10th gen processors

1 x pcie 4.0 – 3.0 x16 slot

– intel® 11th gen processors support pcie 4.0 x16

– intel® 10th gen processors support pcie 3.0 x16

intel® h510 chipset

2 x pcie 3.0 x1 slots

storage
supports 1 x m.2 slot and 4 x sata 6gb – s ports
intel® h510 chipset

m.2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 & sata modes)

4 x sata 6gb – s ports

* the m.2 slot shares bandwidth with the sata6g_2 port. when a device in
sata mode is installed on the m.2 slot – the sata6g_2 port cannot be used.

ethernet
1 x intel® i219 – v 1gb ethernet
usb
rear usb:total 6 ports
2 x usb 3.2 gen 1 ports (2 x type – a)

4 x usb 2.0 ports (4 x type – a)

front usb:total 6 ports
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

audio
realtek alc897 – 887 7.1 surround sound high definitión audio codec*

– supports: jack – detectión – multi – streaming – front panel jack – retasking

– supports up to 24 – bit – 192 khz playbackpulgadas

audio features

– audio shielding

– premium japanese audio capacitors

– dedicated audio pcb layers

* a chassis with an hd audio module in the front panel is required to support
7.1 surround sound audio output.

back panel i – o ports
2 x usb 3.2 gen 1 ports (2 x type – a)

4 x usb 2.0 ports (4 x type – a)

1 x displayport

1 x d – sub port

1 x hdmi port

1 x intel® i219 – v 1gb ethernet port

3 x audio jacks

1 x ps – 2 keyboard (purple) port

1 x ps – 2 mouse (green) port

intrernal connectors
fan and cooling related

1 x 4 – pin cpu fan header

2 x 4 – pin chassis fan headers

power related

1 x 24 – pin main power connector

1 x 8 – pin +12v power connector

storage related

1 x m.2 slot (key m)

4 x sata 6gb – s ports

usb

1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

miscellaneous

2 x aura addressable gen 2 headers

2 x aura rgb headers

1 x clear cmos header

1 x com port header

1 x front panel audio header (aafp)

1 x s – pdif out header

1 x speaker header

1 x spi tpm header (14 – 1pin)

1 x 10 – 1 pin system panel header

special features
asus 5x protection iii

– digi+ vrm

– languard

– overvoltage protectión

– safeslot core

– stainless – steel back i – o

asus q – design

– q – dimm

– q – slot

asus thermal solutión

– m.2 heatsink

– vrm heatsink design

aura sync

– aura rgb headers

– addressable gen 2 rgb headers

software features
asus exclusive software

armoury crate

– aura creator

– aura sync

ai suite 3

– performance and power saving utility

turbov evo

epu

digi+ vrm

fan xpert 2+

– ez update

asus cpu – z

ai charger

daemon tools

nortón anti – virus software (free trial versión)

winrar

uefi bios

asus ez diy

– asus crashfree bios 3

– asus ez flash 3

– asus uefi bios ez mode

bios
128 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables

2 x sata 6gb – s cables

miscellaneous

1 x i – o shield

1 x m.2 rubber package

1 x m.2 ssd screw package

installatión media

1 x support dvd

documentatión

1 x user manual

operating system
windows® 10 64 – bit
form factor
matx form factor
22.6cm x 21.1cm
