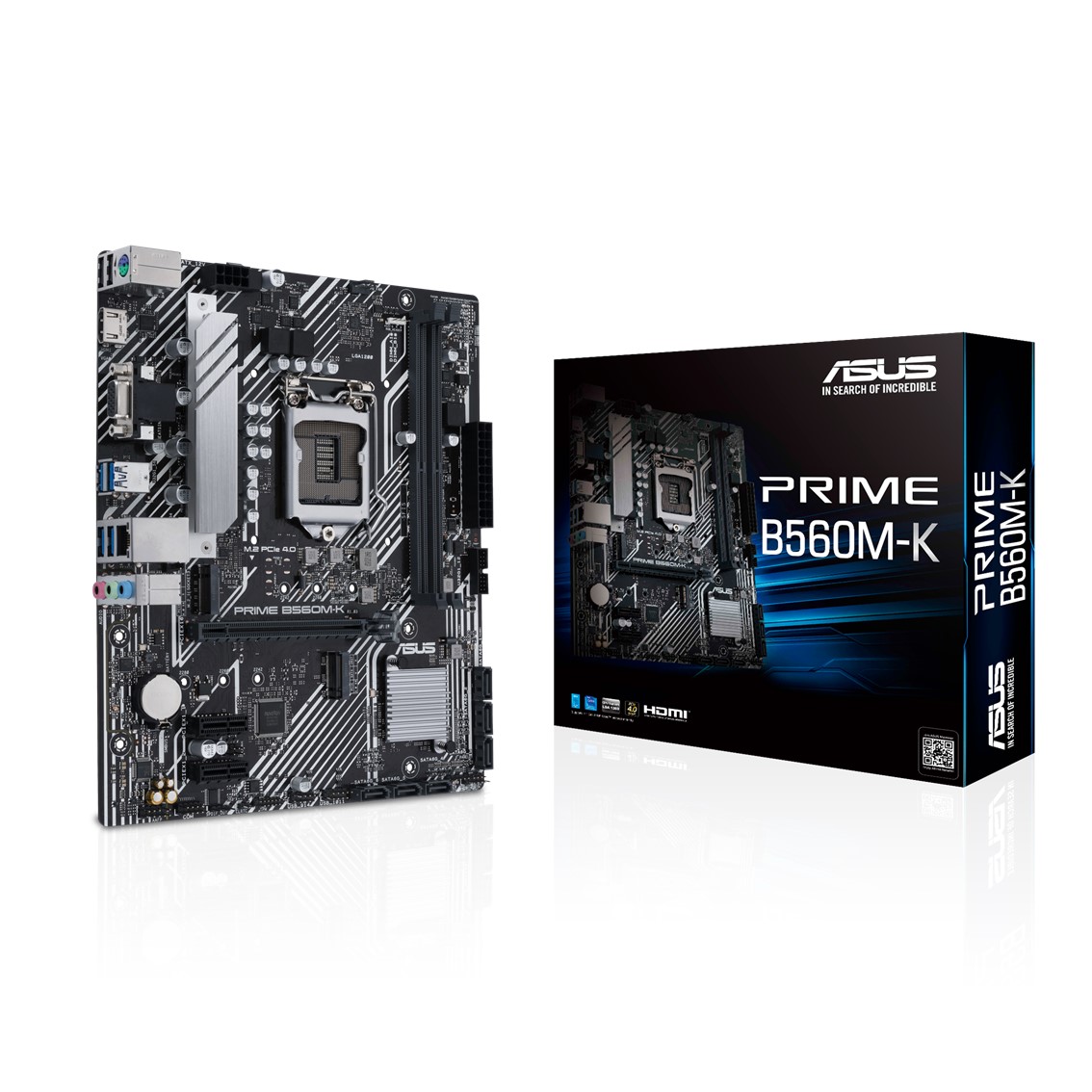

Placa Base Asus Intel Prime B560M – K MGS0000002433
Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® b560 chipset
memory
memory channels:2ddr4 (dual channel)
max memory size:64gb
ddr4 5000(oc) – 4800(oc) – 4600(oc) – 4400(oc) – 4266(oc) – 4000(oc) – 3733
(oc) – 3600(oc) – 3466(oc) – 3333(oc) – 3200(oc) – 2933 – 2800 – 2666 – 2400 – 2133 mhz
non – ecc – un – buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.
* 11th gen intel® processors support 2933 – 2800 – 2666 – 2400 – 2133 natively.
* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x d – sub
1 x hdmi 2.0***
* graphics specificatións may vary between cpu types.
** only intel® 11th gen processors support hdmi 2.0 with max. resolutión
of 4k@60hz – others will only support hdmi 1.4 with max. resolutión of
4k@30hz .please refer to www.intel.com for any updates.
expansión slots
intel® 11th &10th gen processors
1 x pcie 4.0 – 3.0 x16 slot
– intel®11th gen processors support pcie 4.0 x16 mode
– intel®10th gen processors support pcie 3.0 x16 mode
intel® b560 chipset
2 x pcie 3.0 x1 slots
storage
supports 2 x m.2 slots and 6 x sata 6gb – s ports
intel®11th gen processors
m.2_1 slot (key m) – type 2242 – 2260 – 2280
– only intel® 11th gen processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus
intel®b560 chipset
m.2_2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 & sata
modes)*
6 x sata 6gb – s ports
* the m.2_2 shares bandwidth with sata6g_2.when m.2_2 runs sata
mode – sata6g_2 will be disabled.
ethernet
1 x intel® i219 – v 1gb ethernet
asus languard
usb
rear usb:total 6 ports
4 x usb 3.2 gen 1 ports (4 x type – a)
2 x usb 2.0 ports (2 x type – a)
front usb:total 6 ports
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio
realtek alc897 7.1 surround sound high definitión audio codec*
– supports: jack – detectión – multi – streaming – front panel jack – retasking
– supports up to 24 – bit – 192 khz playback
audio features
– audio shielding
– premium japanese audio capacitors
– dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support
7.1 surround sound audio output.
back panel i – o ports
4 x usb 3.2 gen 1 ports (4 x type – a)
2 x usb 2.0 ports (2 x type – a)
1 x d – sub port
1 x hdmi port
1 x intel® i219 – v 1gb ethernet
3 x audio jacks
1 x ps – 2 keyboard – mouse combo port
intrernal connectors
fan and cooling related
1 x 4 – pin cpu fan header
1 x 4 – pin chassis fan header
power related
1 x 24 – pin main power connector
1 x 8 – pin+12v power connector
storage related
2 x m.2 slots (key m)
6 x sata 6gb – s ports
usb
1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
miscellaneous
1 x rgb header
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x s – pdif out header
1 x speaker header
1 x spi tpm header (14 – 1pin)
1 x 10 – 1 pin system panel header
special features
asus 5x protection iii
– digi+ vrm
– languard
– overvoltage protectión
– safeslot core
– stainless – steel back i – o
asus q – design
– q – dimm
– q – slot
asus thermal solutión
– vrm heatsink design
asus lighting control
– rgb header
software features
asus exclusive software
armoury crate
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert
– ez update
asus cpu – z
ai charger
daemon tools
nortón anti – virus software (free trial versión)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
128 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables
2x sata 6gb – s cables
miscellaneous
1 x i – o shield
2 x m.2 anchors
installatión media
1 x support dvd
documentatión
1 x user manual
operating system
windows 10 64bit
form factor
microatx
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
