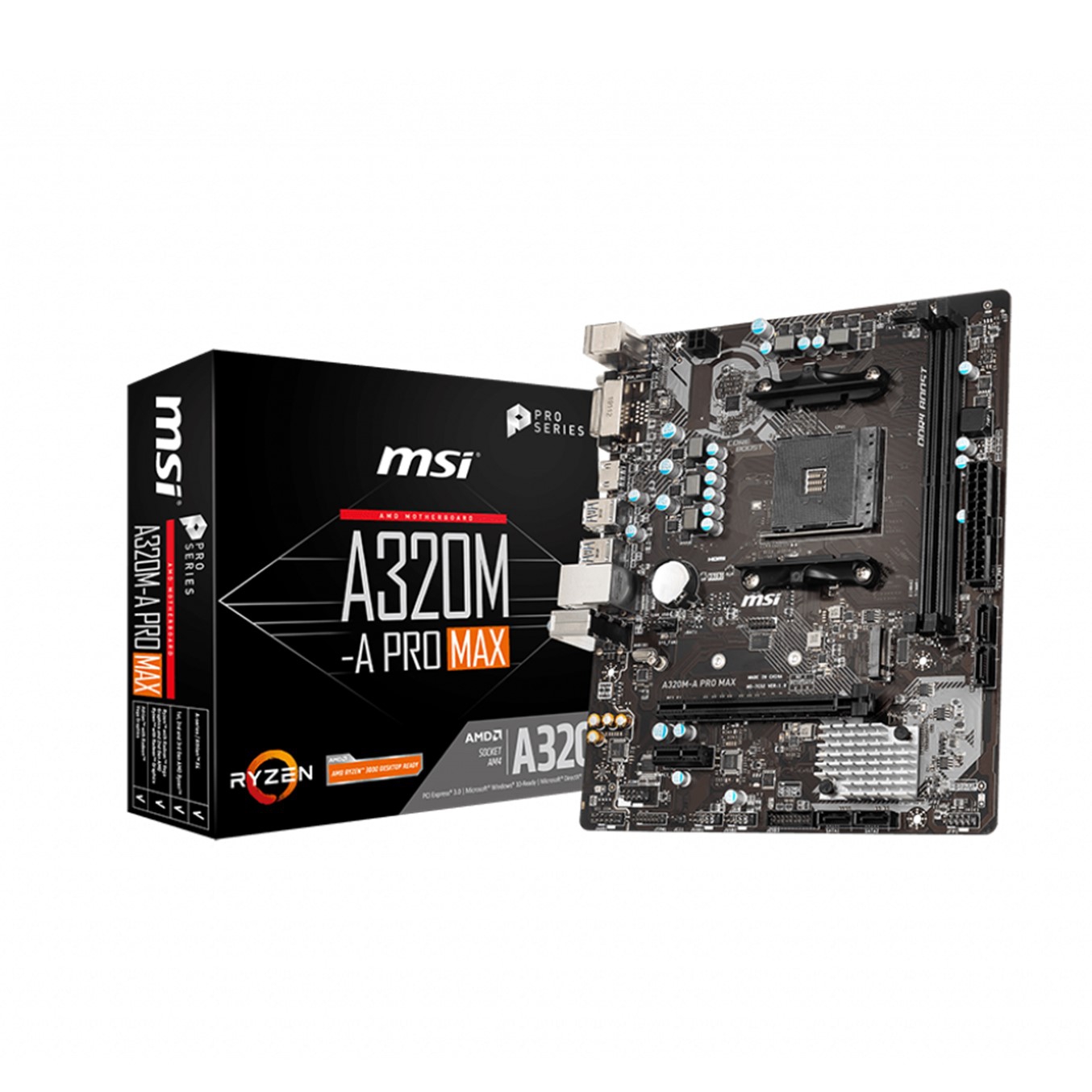

Placa Base Msi Amd A320M – A Pro Max Socket Am4 Ddr4 X2 2667Mhz Max 32Gb Dvi – D Hdmi Matx

Placa Base Msi Amd A320M – A Pro A320M-A-PRO-MAX

Processor
supports 1st – 2nd and 3rd gen amd ryzen – ryzen with radeon vega
graphics and 2nd gen amd ryzen with radeon graphics – athlon with
radeon vega graphics and a – series – athlon x4 desktop processors for
socket am4
see supported processors
chipset
amd® a320 chipset
memory
2 x ddr4 memory slots – support up to 32gb
support ddr4 1866 – 2133 – 2400 – 2667 – 2933(oc) – 3200(oc)mhz(by jedec)
supports 2667 – 2800 – 2933 – 3000 – 3066 – 3200 mhz (by a – xmp oc mode)
dual channel memory architecture
supports ecc udimm memory (non – ecc mode)
support non – ecc udimm memory
see supported memory
slots
1 x pcie 3.0 x16 slot
supports x16 speed
1st – 2nd and 3rd gen amd ryzen
supports x8 speed
ryzen with radeon vega graphics
2nd gen amd ryzen with radeon graphics
a – series
athlon x4
supports x4 speed
amd® athlon with radeon vega graphics
pcie 2.0 x1 slot
onboard graphics
1 x dvi – d port – supports a maximum resolutión of 1920×1200@60hz1 -2
1 x hdmi 1.4 port – supports a maximum resolutión of 4096×2160 @24hz1 -2
only support when using the processor with graphicss
maximum shared memory of 2048 mb
storage
amd® a320 chipset
4 x sata 6gb – s ports
supports raid 0 – raid1 and raid 10
1x m.2 slot (key m)
supports pcie 3.0 x4 and sata 6gb – s
1st – 2nd and 3rd gen amd ryzen
ryzen with radeon vega graphics
2nd gen amd ryzen with radeon graphics
supports pcie 3.0 x2 and sata 6gb – s
amd® athlon with radeon vega graphics
a – series
athlon x4
supports 2242 – 2260 – 2280 – 22110 storage devices
usb
amd® a320 chipset
6x usb 3.2 gen1 (superspeed usb) ports (4 ports on the back panel – 2 ports
available through the internal usb connector)
6x usb 2.0 (high – speed usb) ports (2 ports on the back panel – 4 ports
available through the internal usb connectors)
audio
realtek® alc892 codec
7.1 – channel high definitión audio
lan
1 x realtek® 8111h gigabit lan controller
internal connectors
1x 24 – pin atx main power connector
1x 4 – pin atx 12v power connector
4x sata 6gb – s connectors
2x usb 2.0 connectors (supports additiónal 4 usb 2.0 ports)
1x usb 3.2 gen1 connector (supports additiónal 2 usb 3.2 gen1 ports)
1x 4 – pin cpu fan connector
1x 4 – pin system fan connector
1x front panel audio connector
2x front panel connectors
1x tpm module connector
1x chassis intrusión connector
1x seríal port connector
1x clear cmos jumper

mouse
dvi – d port
usb 3.2 gen1
lan port
keyboard
hdmi port
usb 2.0 ports
hd audio connectors
dimensións
9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
m – atx form factor
mounting
6 mounting holes
operating system
support for windows® 10 64 – bit
support for windows® 7 64 – bit
* to support windows® 7 64 – bit – you must install an amd pinnacle ridge &
summit ridge cpu.

Comprar Placa Base Msi Amd A320M – A Pro A320M-A-PRO-MAX

A320M-A-PRO-MAX,911-7C52-001,4719072667665
