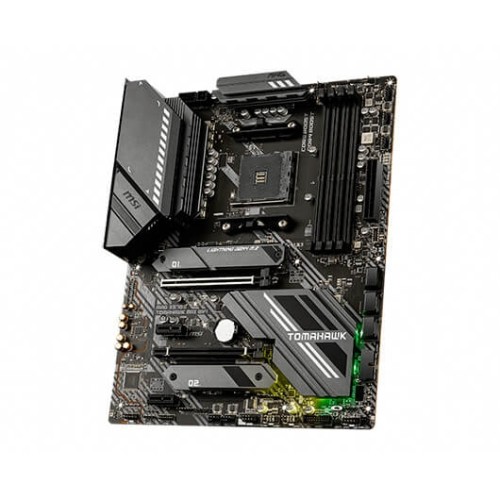

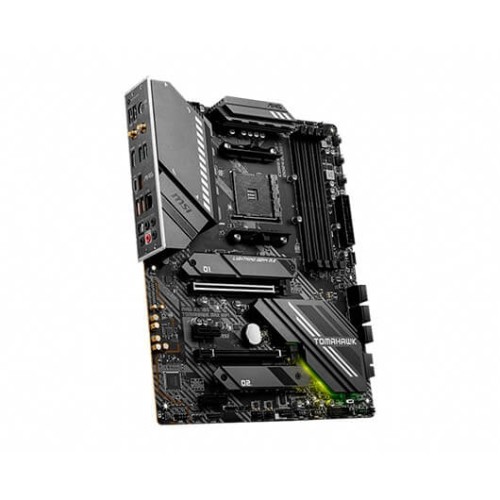

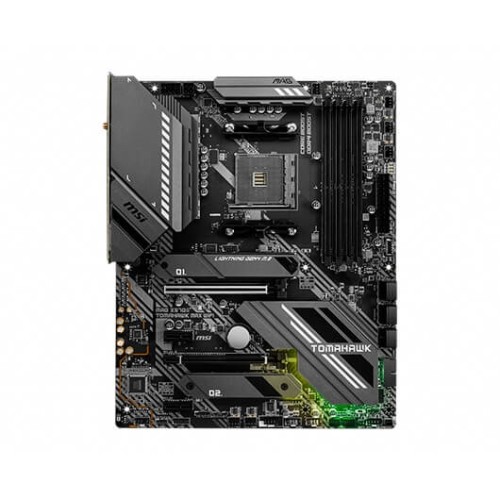

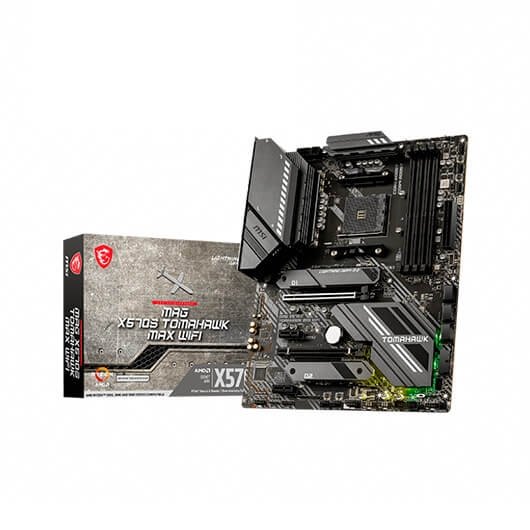

Placa Base Msi Am4 Mag X570S DSP0000004356
Características
admite procesadores de escritorio amd ryzen 5000 series – 5000 g – series – 4000
g – series – 3000 series – 3000 g – series – 2000 series y 2000 g – series
admite memoria ddr4 – hasta 5100 (oc) mhz
solución térmica premium: el diseño de disipador de calor extendido y m.2 shield
frozr están diseñados para un sistema de alto rendimiento y trabajos continuos
solución 2.5g lan e intel wi – fi 6e: solución de red mejorada para uso profesiónal
y multimedia. ofrece una conexión de red segura – estable y rápida
lightning m.2: la ejecución en pcie gen4 x4 maximiza el rendimiento de los ssd
basados en nvme
audio boost 5: recompense sus oídos con calidad de sonido de estudio para la
experiencia de juego más envolvente
multi – gpu: con ranuras pcie de armadura de acero. admite amd crossfire de 2
vías
especificaciónes
cpu
supports amd ryzen 5000 series – 5000 g – series – 4000 g – series – 3000 series –
3000 g – series – 2000 series and 2000 g – series desktop processors1
supports socket am4
please go to msi.com to get the newest support status as new processors are
released.
chipset
amd x570 chipset
memory
4x ddr4 memory slots – support up to 128gb
supports 1866 – 2133 – 2400 – 2667 – 2800 – 2933 – 3000 – 3066 – 3200 mhz by jedec1
max overclocking frequency by a – xmp oc mode:
for ryzen 5000 g – series & 4000 g – series processors
1dpc 1r max speed up to 5100 mhz
1dpc 2r max speed up to 4000 mhz
2dpc 1r max speed up to 4266 mhz
2dpc 2r max speed up to 3600 mhz
for ryzen 5000 series & 3000 series processors
1dpc 1r max speed up to 5100 mhz
1dpc 2r max speed up to 3866 mhz
2dpc 1r max speed up to 4000 mhz
2dpc 2r max speed up to 3600 mhz
supports dual – channel mode
supports non – ecc – un – buffered memory
expansion slot
supports pcie 4.0 – pcie 3.0 specificatión
pcie 4.0 is available only on amd ryzen 5000 series and 3000 series desktop
processors
1x pcie x16 slot (from processor)
pci_e1 supports pcie 4.0 – 3.0 x16
1x pcie x16 slot (from x570 chipset)
pci_e3 supports pcie 4.0 – 3.0 x4
2x pcie 3.0 x1 slots (from x570 chipset)
multi – gpu
supports amd crossfire technology
onboard graphics
1x hdmi 2.1 port – supports a maximum resolutión of 4k 60hz 1 2
available only on processors featuring integrated graphics.graphics
specificatións may vary depending on the cpu installed.
storage
6x sata 6gb – s ports (from amd x570 chipset)
2x m.2 slots (key m)
support up to pcie 4.0 for amd ryzen 5000 series and 3000 series desktop
processors
support up to pcie 3.0 for amd ryzen 5000 g – series – 4000 g – series – 3000 g –
series – 2000 series and 2000 g – series desktop processor
supports up to sata 6gb – s
m2_1 slot (from processor)
support 2280 – 22110 storage devices
m2_2 slot (from amd x570 chipset)
supports 2242 – 2260 – 2280 storage devices
raid
supports raid 0 – raid 1 and raid 10
usb
amd x570 chipset
3x usb 3.2 gen 2 10gbps ports (2 type – a ports on the back panel – 1 type – c
internal connector)
4x usb 3.2 gen 1 5gbps ports available through the internal usb 3.2 gen 1
5gbps connectors
6x usb 2.0 ports (2 type – a ports on the back panel – 4 ports available through the
internal usb 2.0 connectors)
amd processor
2x usb 3.2 gen 2 10gbps ports on the back panel (type – a & type – c)
2x usb 3.2 gen 1 5gbps type – a ports on the back panel
audio
realtek® alc4080 codec
7.1 – channel high definitión audio
supports s – pdif output
lan
1x realtek® 8125b 2.5gbps lan controller
wireless lan & bluetooth
intel® wi – fi 6e ax210
the wireless module is pre – installed in the m.2 (key – e) slot
supports mu – mimo tx – rx – 2.4ghz – 5ghz – 6ghz 1 (160mhz) up to 2.4gbps
supports 802.11 a – b – g – n – ac – ax
supports bluetooth® 5.22 – fips – fisma
wi – fi 6e 6ghz may depend on every countrys regulatións and will be ready in
win10 21h1.bluetooth 5.2 will be ready in win10 21h1.
internal connectors
1x 24 – pin atx main power connector
1x 8 – pin atx 12v power connector
1x 4 – pin atx 12v power connector
6x sata 6gb – s connectors
2x usb 2.0 connectors (supports additiónal 4 usb 2.0 ports)
2x usb 3.2 gen 1 5gbps connectors (supports additiónal 4 usb 3.2 gen 1 5gbps
ports)
1x usb 3.2 gen 2 10gbps type – c port
1x 4 – pin cpu fan connector
1x 4 – pin water – pump connector
4x 4 – pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusión connector
1x tpm module connector
1x seríal port connector
1x chassis intrusión connector
led feature
2x 4 – pin rgb led connectors
2x 3 – pin rainbow led connectors
4x ez debug led
1x ez led control switch

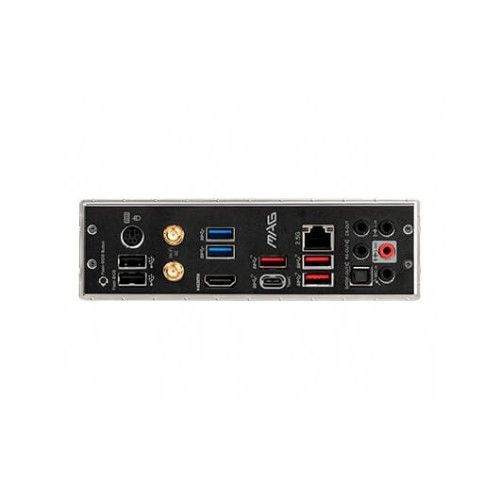

back panel ports
ps – 2 mouse – keyboard
wi – fi antenna
usb 3.2 gen 1 5gbps (type – a)
usb 3.2 gen 2 10gbps (type – a)
2.5g lan port
hd audio connectors
flash bios buttón
usb 2.0 port
hdmi 2.1 port
usb 3.2 gen 2 10gbps (type – c)
usb 3.2 gen 2 10gbps (type – a)
optical s – pdif out
dimensions
atx form factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
operating system
support for windows® 10 64 – bit
