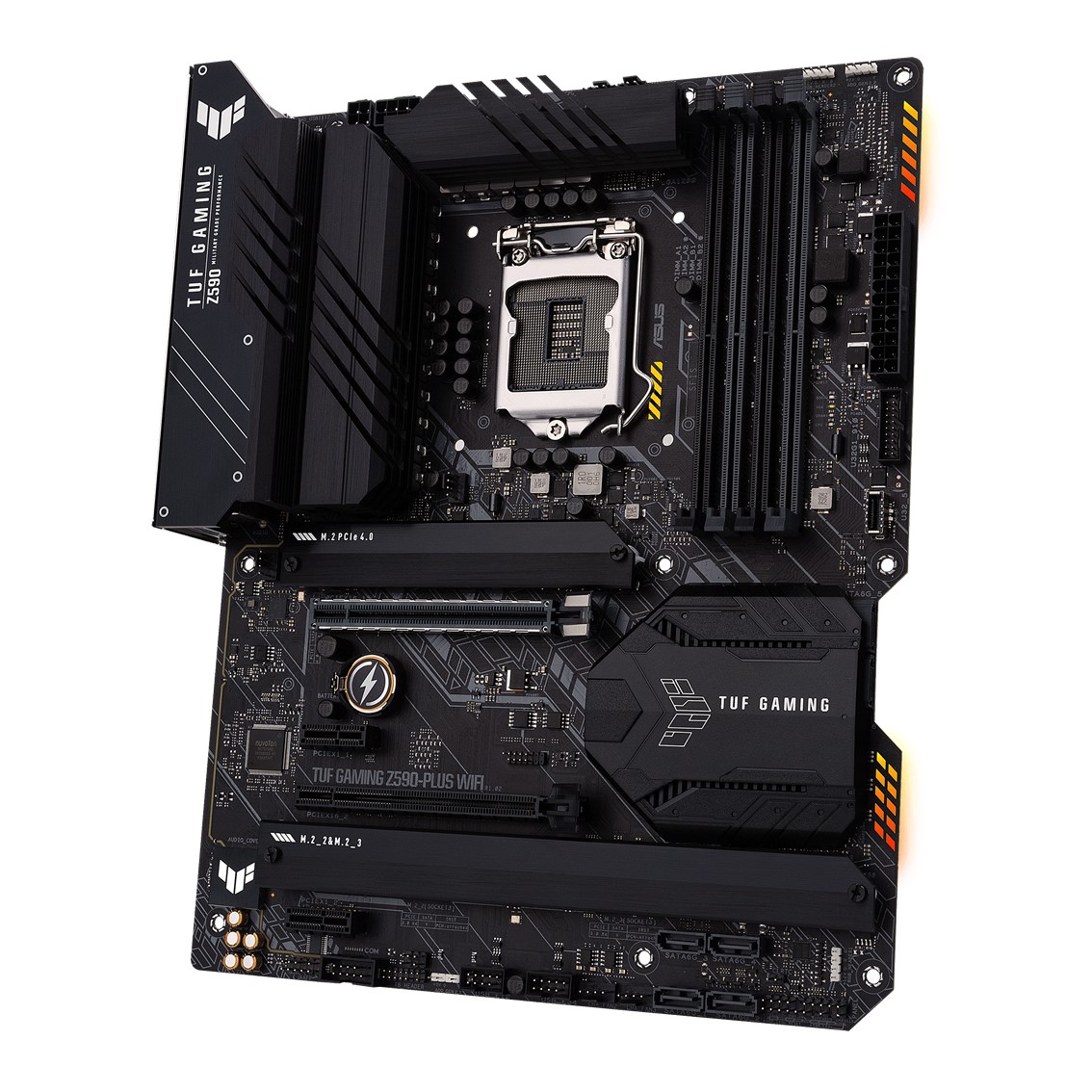

Placa Base Asus Intel Tuf Gaming Z590 – Plus Wifi Socket 1200 Ddr4 X4 Max 128Gb 3200Mhz Display Port Hdmi Atx

Placa Base Asus Intel Tuf Gaming MGS0000002038

Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors
supports intel® 14 nm cpu

supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**

* refer to www.asus.com for cpu support list.

** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® z590 chipset
memory
memory channels:4ddr4 (dual channel)
max memory size:128gb
ddr4 5133(oc) – 5000(oc) – 4800(oc) – 4700(oc) – 4600(oc) – 4500(oc) – 4400(oc)
– 4266(oc) – 4133(oc) – 4000(oc) – 3866(oc) – 3733(oc) – 3600(oc) – 3466(oc) – 3400
(oc) – 3333(oc) – 3200 – 3000 – 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un –
buffered memory*

dual channel memory architecture

supports intel® extreme memory profile (xmp)

optimem ii

* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.

* 11th gen intel® processors support 3200 – 2933 – 2800 – 2666 – 2400 – 2133
natively.

* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x displayport 1.4**
1 x hdmi 2.0***
1 x displayport 1.4**

1 x hdmitm 2.0***

* graphics specificatións may vary between cpu types.

** intel® 11th & 10th processors support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
updates.

*** only intel® 11th processors – support hdmi 2.0 with max. resolutión of
4k@60hz – others would only support hdmi 1.4 with max. resolutión of
4k@30hz .please refer to www.intel.com for any update.

**** vga resolutión support depends on processors’ or graphic cards’
resolutión.
expansión slots
1 x pcie 4.0 – 3.0 x16 + 1 x pcie 3.0 x16 (max. x4)
intel® 11th & 10th gen processors

1 x pcie 4.0 – 3.0 x16 slot*

– intel® 11th processors support pcie 4.0 x16

– intel®10th processors support pcie 3.0 x16

intel® z590 chipset

1 x pcie 3.0 x16 slot (supports x4 mode)

2 x pcie 3.0 x1 slots

* supports pcie bandwidth bifurcatión for raid on cpu functión.
* enable rst pcie storage remapping for pch attached pcie slots to
activate intel® optane memory.
storage
supports 3 x m.2 slots and 6 x sata 6gb – s ports
total supports 3 x m.2 slots and 6 x sata 6gb – s ports

intel®11th gen processors

m.2_1 slot (key m) – type 2242 – 2260 – 2280 – 22110

– only intel® 11th processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus

intel® z590 chipset

m.2_2 slot (key m) – type 2242 – 2260 – 2280 – 22110 (supports pcie 3.0 x4 &
sata modes)***

m.2_3 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 & sata
modes)****

6 x sata 6gb – s ports

* raid functión for pcie mode ssd in intel® rapid storage technology is
available with either 1. intel® ssds installed in both cpu – attached and pch –
attached slots – or 2. any other 3rd party ssds installed in pch – attached
slots.

** to enable intel® optane memory (hybrid storage device) – it must be
installed in pch – attached slots with intel® rapid storage technology.

*** m.2_2 shares bandwidth with sata6g_2. when m.2_2 runs sata mode –
sata6g_2 will be disabled.

**** m.2_3 shares bandwidth with sata6g_56. when m.2_3 is occupied –
sata6g_56 will be disabled.
ethernet
1 x intel® 2.5gb ethernet
wireless & bluetooth
intel® wi – fi 6
usb
rear usb:total 7 ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)

2 x usb 3.2 gen 2 ports (2 x type – a)

2 x usb 3.2 gen 1 ports (2 x type – a)

2 x usb 2.0 ports (2 x type – a)

front usb:total 7 ports
1 x usb 3.2 gen 1 connector (suppports usb type – c®)

1 x usb 3.2 gen 1 header supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports
audio
realtek alc s1200a 7.1 surround sound high definitión audio codec*

– supports: jack – detectión – multi – streaming – front panel jack – retasking

– supports up to 24 – bit – 192 khz playback

audio features

– audio shielding

– rear optical s – pdif out port

– premium japanese audio capacitors

– dedicated audio pcb layers

– audio cover
back panel i – o ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)

2 x usb 3.2 gen 2 ports (2 x type – a)

2 x usb 3.2 gen 1 ports (2 x type – a)

2 x usb 2.0 ports (2 x type – a)

1 x displayport

1 x hdmi port

1 x asus wi – fi module

1 x intel® i225 – v 2.5gb ethernet port

5 x audio jacks

1 x optical s – pdif out port

1 x ps – 2 keyboard – mouse combo port
intrernal connectors
1 x thunderbolt 4 header
fan and cooling related

1 x 4 – pin cpu fan header

1 x 4 – pin cpu opt fan header

1 x 4 – pin aio pump header

3 x 4 – pin chassis fan headers

power related

1 x 24 – pin main power connector

1 x 8 – pin +12v power connector

1 x 4 – pin +12v power connector

storage related

3 x m.2 slots (key m)

6 x sata 6gb – s ports

usb

1 x usb 3.2 gen 1 connector (supports usb type – c®)

1 x usb 3.2 gen 1 headers supports additiónal 2 usb 3.2 gen 1 ports

2 x usb 2.0 headers support additiónal 4 usb 2.0 ports

miscellaneous

2 x aura addressable gen 2 headers

2 x aura rgb headers

1 x clear cmos header

1 x com port header

1 x front panel audio header (aafp)

1 x 20 – 3 pin system panel header with chassis intrude functión

1 x thunderbolt header
special features
asus tuf protection

– digi+ vrm ( – digital power design with drmos)

– enhanced dram overcurrent protectión

– tuf languard

– overvoltage protectión

asus q – design

– m.2 q – latch

– q – dimm

– q – led (cpu [red] – dram [yellow] – vga [white] – boot device [yellow green])

– q – slot

asus thermal solutión

– m.2 heatsink

– vrm heatsink design

asus ez diy

– procool

– pre – mounted i – o shield

– safeslot

aura sync

– aura rgb headers

– addressable gen 2 rgb headers
software features
asus exclusive software

armoury crate

– aura creator

– aura sync

– two – way ai noise cancelatión

ai suite 3

– performance and power saving utility

turbov evo

epu

digi+ vrm

fan xpert 4

– ez update

tuf gaming cpu – z

ai charger

asus turbo lan

daemon tools

dts custom for gaming headsets

myasus

nortón anti – virus software (free trial versión)

winrar

uefi bios

asus ez diy

– asus crashfree bios 3

– asus ez flash 3

– asus uefi bios ez mode

bios
192 (128+64) mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables

2 x sata 6gb – s cables

miscellaneous

1 x asus wi – fi moving antenna

2 x m.2 rubber packages

1 x m.2 ssd screw package

1 x tuf gaming sticker

installatión media

1 x support dvd

documentatión

1 x tuf certificatión card

1 x user manual

operating system
windows® 10 64 – bit
form factor
atx
30.5cm x 24.4cm
