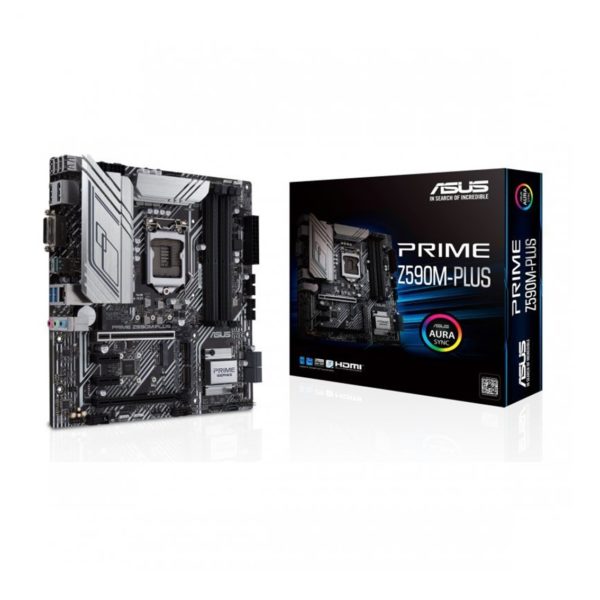

Placa Base Asus Intel Prime Z590M – Plus MGS0000001611
Cpu
intel® socket lga1200 for 11th gen intel® core processors & 10th gen
intel® core – pentium® gold and celeron® processors*
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu
types.
chipset
intel® z590 chipset
memory
4 x dimm – max. 128gb – ddr4 5133(oc) – 5000(oc) – 4800(oc) – 4700(oc) – 4600
(oc) – 4500(oc) – 4400(oc) – 4266(oc) – 4133(oc) – 4000(oc) – 3866(oc) – 3733
(oc) – 3600(oc) – 3466(oc) – 3400(oc) – 3333
(oc) – 3200 – 3000 – 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un – buffered
memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* 10th gen intel® core i7 – i9 processors support
2933 – 2800 – 2666 – 2400 – 2133 natively – others will run at the maximum transfer
rate of ddr4 2666mhz.
* 11th gen intel® processors support 3200 – 2933 – 2800 – 2666 – 2400 – 2133
natively.
* refer to www.asus.com for the memory qvl (qualified vendors lists) – and
memory frequency support depends on the cpu types.
graphics
1 x displayport 1.4**
1 x dvi – d
1 x hdmi 1.4 – 2.0***
* graphics specificatións may vary between cpu types.
** intel® 11th & 10th processors support displayport 1.4 with max.
resolutión of 4096 x 2304 @60hz. please refer to www.intel.com for any
updates.
*** only intel® 11th gen processors support hdmi 2.0 with max. resolutión
of 4k@60hz – others will only support hdmi 1.4 with max. resolutión of
4k@30hz .please refer to www.intel.com for any updates.
expansión slots
intel® 11th & 10th gen processors*
1 x pcie 4.0 – 3.0 x16 slot
– intel® 11th gen processors support pcie 4.0 x16 or x8 – x8 or x8 – x4 – x4
mode – intel®10th gen processors support pcie 3.0 x16 or x8 – x8 or x8 – x4 – x4
mode intel® z590 chipset
1 x pcie 3.0 x16 slot (supports x4 mode)
2 x pcie 3.0 x1 slots
* supports pcie bandwidth bifurcatión for raid on cpu functión.
storage
total supports 3 x m.2 slots and 5 x sata 6gb – s ports
intel®11th gen processors
m.2_1 slot (key m) – type 2242 – 2260 – 2280
– only intel® 11th gen processors support pcie 4.0 x4 mode – this slot will be
disabled for other cpus
intel® z590 chipset
m.2_2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 & sata
modes)
m.2_3 slot (key m) – type 2260 – 2280 (supports pcie 3.0 x4 mode)
5 x sata 6gb – s ports
raid functión in intel® rapid storage technology is available with either 1.
intel® ssds installed in both cpu – attached and pch – attached slots – or 2. any
other 3rd party ssds installed in pch – attached slots.
to enable intel® optane memory (hybrid storage device) – it must be
installed in pch – attached slots with intel® rapid storage technology.
* when a device in sata mode is installed on the m.2_2 slot – sata6g_1 port
cannot be used.
ethernet
1 x intel® i219 – v 1gb ethernet
wireless & bluetooth
m.2 slot only (key e) (support cnvi & pcie interface)*
* wi – fi module is purchased separately.
usb
rear usb (total 8 ports)
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
1 x usb 3.2 gen 2 port (1 x type – a)
2 x usb 3.2 gen 1 ports (2 x type – a)
4 x usb 2.0 ports (4 x type – a)
front usb (total 7 ports)
2 x usb 3.2 gen 1 headers support additiónal 4 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 3 usb 2.0 ports
audio
pulgadasrealtek alc897 7.1 surround sound high definitión audio codec*
– supports: jack – detectión – multi – streaming – front panel jack – retasking
– supports up to 24 – bit – 192 khz playbackpulgadas
audio features
– audio shielding
– premium japanese audio capacitors
– dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support
7.1 surround sound audio output.
back i – o ports
1 x usb 3.2 gen 2×2 port (1 x usb type – c®)
1 x usb 3.2 gen 2 port (1 x type – a)
2 x usb 3.2 gen 1 ports (2 x type – a)
4 x usb 2.0 ports (4 x type – a)
1 x displayport
1 x dvi – d port
1 x hdmitm port
1 x intel® i219v 1gb ethernet
3 x audio jacks
internal i – o connectors
fan and cooling related
1 x 4 – pin cpu fan header
1 x 4 – pin cpu opt fan header
1 x 4 – pin aio pump header
2 x 4 – pin chassis fan headers
power related
1 x 24 – pin main power connector
1 x 8 – pin +12v power connector
1 x 4 – pin +12v power connector
storage related
3 x m.2 slots (key m)
5 x sata 6gb – s ports
usb
2 x usb 3.2 gen 1 headers support additiónal 4 usb 3.2 gen 1 ports
2 x usb 2.0 headers support additiónal 3 usb 2.0 ports
miscellaneous
2 x aura addressable gen 2 headers
2 x aura rgb headers
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x m.2 slot (key e)
1 x s – pdif out header
1 x spi tpm header (14 – 1pin)
1 x 20 – 3 pin system panel header with chassis intrude functión
1 x thunderbolt header
special features
asus 5x protection iii
– digi+ vrm ( – digital power design with drmos)
– languard
– overvoltage protectión
– safeslot core+
– stainless – steel back i – o
asus q – design
– asus q – dimm
– asus q – slot
asus thermal solutión
– vrm heatsink design
asus ez diy
– procool
aura sync
– aura rgb headers
– addressable gen 2 rgb headers
software features
asus exclusive software
armoury crate
– aura sync
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert 4
– ez update
asus cpu – z
ai charger
nortón anti – virus software (free trial versión)
daemon tools
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
192 (128+64) mb flash rom – uefi ami bios
manageability
wol by pme – pxe
accessories
cables
2 x sata 6gb – s cables
miscellaneous
1 x i – o shield
2 x m.2 ssd screw package
installatión media
1 x support dvd
documentatión
1 x user manual
operating system
windows® 10 – 64 bit
form factor
matx form factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Comprar Placa Base Asus Intel Prime Z590M – Plus MGS0000001611
MGS0000001611,90MB1690-M0EAY0,4711081103356
