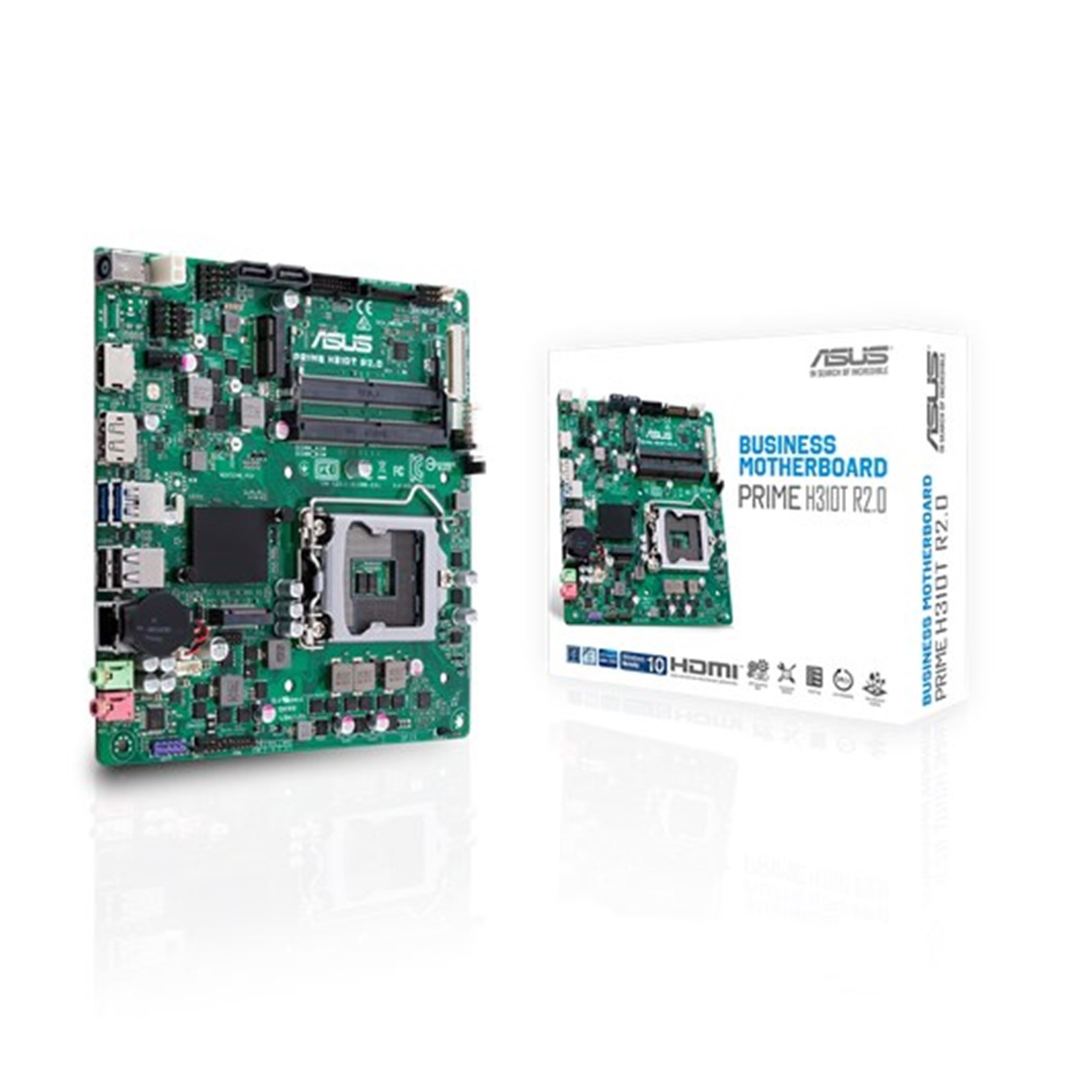

Placa Base Asus Intel Prime H310T R2.0 Socket 1151 Ddr4 X2 Max 32Gb 2666Ghz Display Port Hdmi Thin Mini Itx

Placa Base Asus Intel Prime H310T PRIME-H310TR2

Cpu
intel® for 8th generatión core core i7 – core i5 – core
i3 – pentium® – celeron® processors
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0
supports cpu up to 65 w
* the intel® turbo boost technology 2.0 support depends on the cpu
types.
* refer to www.asus.com for cpu support list
chipset
intel® h310
memory
2 x so – dimm – max. 32gb – ddr4 2666 – 2400 – 2133 mhz non – ecc – un – buffered
memory
supports intel® extreme memory profile (xmp)
* hyper dimm support is subject to the physical characteristics of
individual cpus.
* refer to www.asus.com for the memory qvl (qualified vendors lists).
* the maximum memory frequency supported varies by processor.
** ddr4 2666mhz and higher memory modules will run at max. 2666mhz on
intel® 8th gen. 6 – core or higher processors.
graphic
integrated graphics processor – intel® hd graphics support
multi – vga output support : hdmi – lvds – displayport ports
– supports hdmi with max. resolutión 4096 x 2160 @ 24 hz – 2560 x 1600 @
60 hz
– supports lvds with max. resolutión 1920 x 1200 @ 60 hz
– supports displayport with max. resolutión 4096 x 2304 @ 60 hz
maximum shared memory of 1024 mb (for igpu exclusively)
supports intel® intru 3d – quick sync video – clear video hd technology –
insider
supports up to 2 displays simultaneously
expansión slots
1 x m.2 socket 1 with e key – type 2230 for wifi – bt devices support pcie – usb
mode
storage
intel® h310 chipset :
1 x m.2 socket 3 – with m key – type 2260 – 2280 storage devices support (both
sata & pcie mode)
2 x sata 6gb – s port(s)
lan
realtek® rtl8111h – 1 x gigabit lan controller(s)
audio
realtek® alc887 8 – channel high definitión audio codec *1
– supports : jack – detectión – multi – streaming – front panel jack – retasking
usb ports
intel® h310 chipset :
4 x usb 3.1 gen 1 port(s) (2 at back panel – blue – 2 at mid – board)
intel® h310 chipset :
4 x usb 2.0 port(s) (2 at back panel – black – 2 at mid – board)
gl852g usb hub :
3 x usb 2.0 port(s) (type – a – 3 at mid – board)
special features
bespoke motherboard design & business focused features :
– overcurrent protectión: short circuit preventión – protects your system
– asus self recovering bios: automatically recover bios update once
crash happen
– asus event log: record activities of system and provides informatión in
bios – asus commercial bios kit: speed up bios update solutiónby partíal
bios design
– anti – moisture: against moisture and corrosión prolonging the life of
your motherboard
– 24 – 7 reliability: tested under temperature up to 45°c and humidity up to
80% to ensure handle diverse environment
easy assembly design:
– fixed – positión&color – coded connectors: enable easy identificatión and
cable – matching – speeding up the productión line
– box headers: usb headers are box style – enabling fast connector
installatión and preventing pin damage
digi+vrm
operating system support
windows® 10
back i – o ports
1 x displayport
1 x hdmi
1 x lan (rj45) port(s)
2 x usb 3.1 gen 1 (blue)
2 x usb 2.0
2 x audio jack(s)
1 x dc power connector(s)
internal i – o ports
1 x usb 3.1 gen 1(up to 5gbps) connector(s) support(s) additiónal 2 usb 3.1
gen 1 port(s)
1 x usb 2.0 1 – port connector(s) support(s) additiónal 1 usb 2.0 port(s)
2 x usb 2.0 connector(s) support(s) additiónal 4 usb 2.0 port(s)
1 x m.2 socket 1 with e key – type 2230 for wifi – bt devices support pcie – usb
mode
1 x m.2 socket 3 with m key – type 2260 – 2280 storage devices support
(sata & pcie x2 mode)
1 x com port(s) connector(s)
2 x sata 6gb – s connector(s)
1 x sata power connector(s)
1 x cpu fan connector(s)
1 x chassis fan connector(s)
1 x front panel audio connector(s) (aafp)
1 x chassis intrusión connector(s)
1 x clear cmos jumper(s)
1 x 2 – pin internal dc power connector
1 x stereo speaker connector
1 x dmic header
1 x backlight inverter voltage selectión header
1 x fpd brightness header
1 x panel voltage selectión header
1 x panel off header
1 x lvds connector(s)
1 x 14 – 1 pin tpm connector
1 x system panel connector
1 x speaker connector
accessories
user’s manual
i – o shield
thin mini itx i – o shield
1 x sata power cable
2 x sata 6gb – s cable(s)
1 x m.2 screw package
1 x supporting dvd
bios
128 mb flash rom – uefi ami bios – pnp – dmi 3.0 – wfm 2.0 – sm bios 3.1 – acpi
6.1 – multi – language bios – asus ez flash 3 – erp ready – asus self –
recovering bios – asus event log – asus commercial kit
manageability
wfm 2.0 – dmi 2.0 – wol by pme
support disc
drivers
asus utilities
asus watch dog timer
asus commercial bios kits
anti – virus software (oem versión)
form factor
thin mini itx form factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
note
*1: use a chassis with hd audio module in the front panel to support an 8 –
channel audio output.
*2: use with amplified speaker is suggested.
