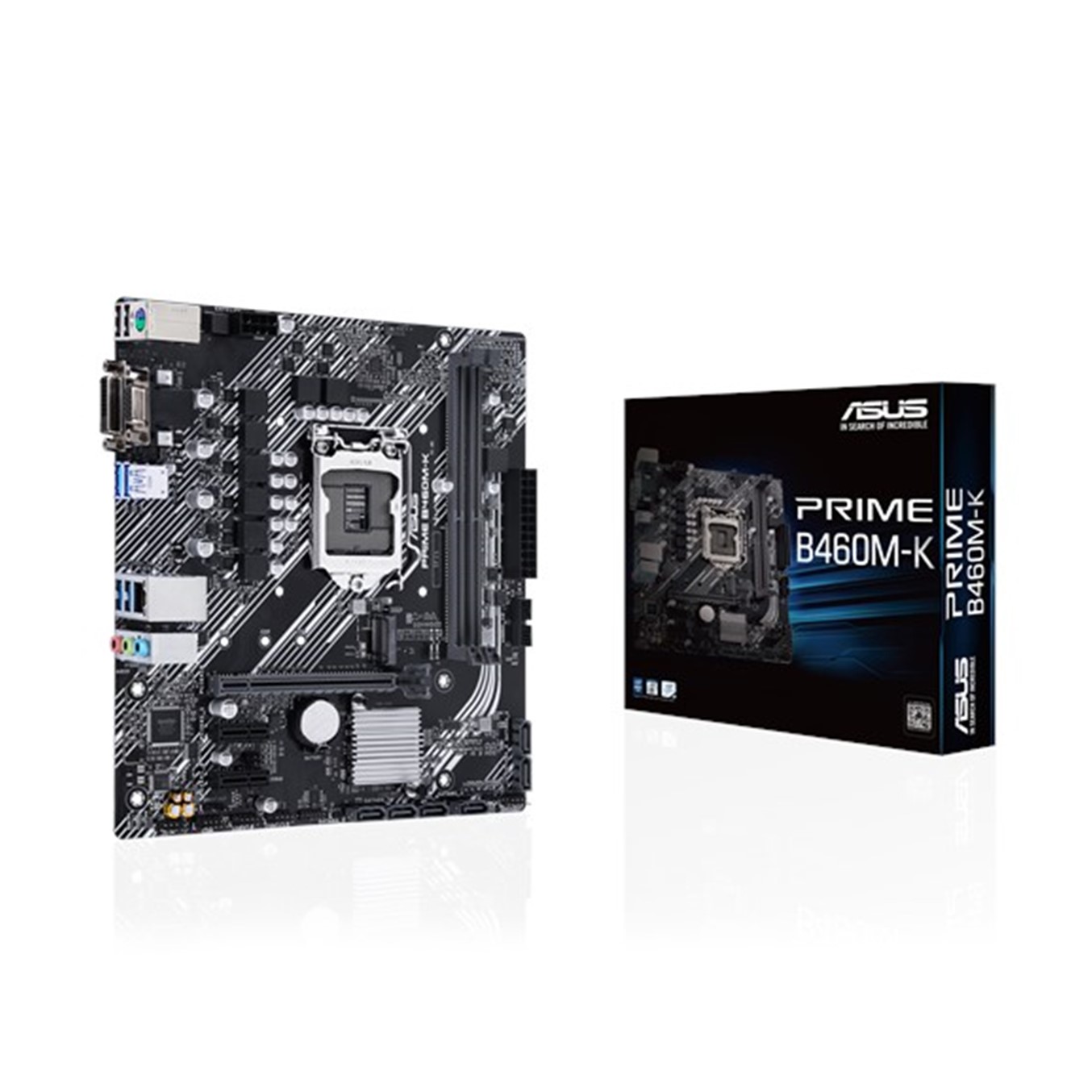

Placa Base Asus Intel Prime B460M – K PRIME-B460M-K
Cpu
intel® socket 1200 for 10th gen intel® core – pentium® gold and celeron®
processors *
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0 and intel® turbo boost max
technology 3.0**
* refer to www.asus.com for cpu support list
**intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset
intel® b460
memory
intel® b460 chipset
2 x dimm – max. 64gb – ddr4 2933 – 2800 – 2666 – 2400 – 2133 mhz non – ecc – un –
buffered memory *
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem
* 10th gen intel® corei9 – i7 cpus support 2933 – 2800 – 2666 – 2400 – 2133
natively – refer to www.asus.com for the memory qvl (qualified vendors
lists).
graphic
1 x d – sub
1 x dvi – d
*graphics specificatións may vary between cpu types.
expansión slots
intel® 10th gen processors
1 x pcie 3.0 – 2.0 x16 (x16 mode)
intel® b460 chipset
2 x pcie 3.0 – 2.0 x1
storage
total supports 1 x m.2 slots and 6 x sata 6gb – s ports
intel® b460 chipset :
1 x m.2_1 socket 3 – with m key – type 2242 – 2260 – 2280 storage devices support
(both sata & pcie mode)
6 x sata 6gb – s port(s)
support raid 0 – 1 – 5 – 10
intel® rapid storage technology supports
intel® optane memory ready
lan
realtek® rtl8111h – 1 x gigabit lan controller(s) – support languard
audio
realtek alc887 7.1 – channel high definitión audio codec *
– supports : jack – detectión – multi – streaming – front panel jack – retasking – up
to 24 – bit – 192khz playback
audio feature :
– led – illuminated design
– audio shielding
– dedicated audio pcb layers
– premium japanese audio capacitors
usb ports
rear usb port ( total 6 )
4 x usb 3.2 gen 1 (up to 5gbps) port(s)(4 x type – a)
2 x usb 2.0 port(s)(2 x type – a)
front usb port ( total 6 )
2 x usb 3.2 gen 1 (up to 5gbps) port(s)
4 x usb 2.0 port(s)
software features
asus exclusive software
armoury crate
ai suite 3
– performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert
– ez update
ai charger
asus cpu – z
daemon tools
nortón anti – virus software(free trial for 60 days)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
asus special features
asus 5x protection iii
– asus digi+ vrm
– asus languard
– asus overvoltage protectión
– asus safeslot core
– asus stainless – steel back i – o
asus q – design
– asus q – dimm
– asus q – slot
back i – o ports
1 x ps – 2 keyboard – mouse combo port(s)
1 x dvi – d
1 x d – sub
1 x lan (rj45) port(s)
4 x usb 3.2 gen 1 type – a
2 x usb 2.0
3 x audio jack(s)
internal i – o ports
1 x cpu fan connector(s) (1 x 4 – pin)
1 x chassis fan connector(s) (1 x 4 – pin)
1 x aafp connector
1 x usb 3.2 gen 1(up to 5gbps) connector(s) support(s) additiónal 2 usb 3.2
gen 1 port(s)
2 x usb 2.0 connector(s) support(s) additiónal 4 usb 2.0 port(s)
1 x m.2 socket 3 with m key – type 2242 – 2260 – 2280 storage devices support
6 x sata 6gb – s connector(s)
1 x s – pdif out header(s)
1 x 24 – pin eatx power connector(s)
1 x 8 – pin atx 12v power connector(s)
1 x system panel(s) (chassis intrusión header is inbuilt)
1 x clear cmos jumper(s)
1 x com port header
1 x speaker connector
accessories
user’s manual
i – o shield
2 x sata 6gb – s cable(s)
1 x m.2 anchor
1 x supporting dvd
bios
128 mb flash rom – uefi ami bios
manageability
wol by pme – pxe
operating system
windows® 10 64 – bit
form factor
matx form factor
8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Comprar Placa Base Asus Intel Prime B460M – K PRIME-B460M-K
PRIME-B460M-K,90MB1400-M0EAY0,4718017557542
