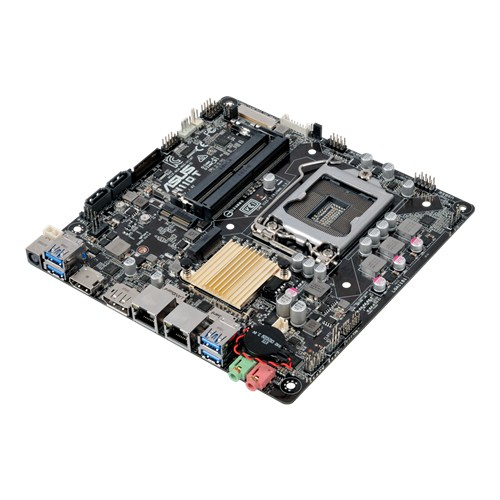

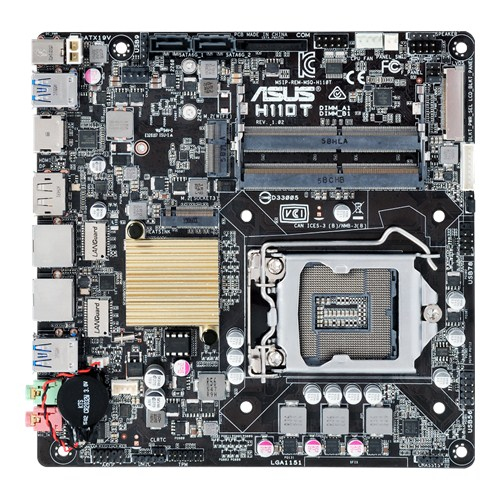

Placa Base Asus Intel H110T Socket H110T
Lga1151 socket for the 6th generatión intel® core i7 – i5 – i3 – pentium® –
celeron® processors
supports 14nm cpu
*up to 65w thermal design power support for intel® standard thin mini – itx
heatsink.
up to 95w thermal design power support for standard 1151 heatsink.
supports intel® turbo boost technology 2.0
** the intel® turbo boost technology 2.0 support depends on the cpu
types.
***refer to www.asus.com for intel® cpu support list.
intel® h110 chipset
2 x so – dimm – max.32gb* – ddr4 2133 mhz – non – ecc
dual channel memory architecture
*refer to www.asus.com or this user manual for the memory qvl(qualified
vendors lists).
1 x m.2 socket 1 with e key – type 2230 for wifi device
integrated graphics processor
multi – vga output support :dp – hdmi – lvds ports
– supports hdmi with max. resolutión of 4096 x 2160 @ 24hz – 2560 x 1600
@ 60hz
– supports lvds with max. resolutión of 1920 x 1200 @ 60hz
– supports displayport with max. resolutión of 4096 x 2304 @ 60 hz
maximum shared memory of 1024 mb
intel® h110 chipset
– 2 x sata 6.0 gb – s ports
– 1 x m.2 socket 3 – with m key – type 2242 – 2260 storage devices support
(both sata & pcie mode)
realtek® 8111h gigabit lan
intel® i219v gigabit lan
4+4 channels realtek alc887 – vd high definitión audio codec
– supports jack – detectión – multi – streaming – front panel retasking
5 x usb 2.0 ports (5 ports at mid – board)
4 x usb 3.0 ports (4 ports at back panel)
asus ez diy
– asus crashfree bios 3
– asus ez flash 2
– asus mylogo 2
asus exclusive features
– asus enhanced dram overcurrent protectión – short circuit damage
preventión
– asus esd guards – enhanced esd protectión
– asus usb 3.0 boost
– network icontrol
– ai suite iii
– ai charger
– asus uefi bios ez mode featuring friendly graphics user interface
asus quiet thermal solutión
– asus fan xpert
100% solid capacitors

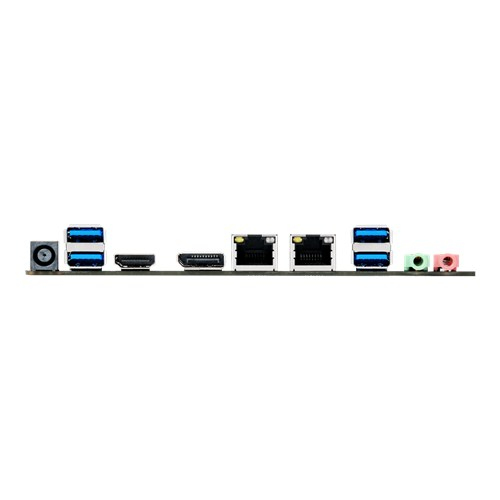

1 x dc power connector (support 12v & 19v)
1 x hdmi
1 x dp
2 x rj45 port
4 x usb 3.0
2 x audio jacks
2 x usb 2.0 2 – port connectors support additiónal 4 usb 2.0 ports
1 x usb 2.0 1 – port connectors support additiónal 1 usb 2.0 ports
1 x lvds header
2 x sata 6gb – s connector
1 x m.2 socket 3 – with m key – type 2242 – 2260 storage devices support (both
sata & pcie mode)
1 x m.2 e key type 2230 for wifi device
1 x cpu fan connector
1 x chassis fan connectors
1 x front panel audio connector(s) (aafp)
1 x system panel connector
1 x clear cmos jumper
1 x com header
1 x tpm header
1 x chassis intrusión header
1 x sata power connector
connectors for aio system
1 x 2 – pin internal dc power connector
1 x stereo speaker connector
1 x dmic header
connectors for flat panel display
1 x backlight inverter voltage selectión header
1 x fpd brightness header
1 x panel voltage selectión header
1 x panel off header
asus 5x protection ii
– asus languard – protects against lan surges – lightning strikes and
static – electricity discharges!
– asus overvoltage protectión – world – class circuit – protecting power
design – asus digi+ vrm – digital power design
– asus dram overcurrent protectión: enhanced dram overcurrent
protectión
– asus stainless – steel back i – o: 3x corrosión – resistance for greater
durability!
superb performance
m.2 onboard
– the latest transfer technologies with up to 20gb – s data transfer speeds
asus fan xpert
– ultimate cooling and quietness
uefi bios
– most advanced optións with fast response time
pc cleaner
– fast and easy way to get rid of unnecessary junk files
one stop control
ai suite 3
push notice
– monitor your pc status with smart devices in real time
mobo connect
media streamer
– pipe music or movies from your pc to a smart tv
– media streamer app for portable smartphone – tablet – supporting ios7
and android 4.0 system
100% all high – quality conductive polymer capacitors
windows® 10*
windows® 8.1*
windows® 7
*64 – bit supported only
128 mb flash rom – ami bios – pnp – dmi3.0 – wfm2.0 – sm bios 3.0 – acpi 5.0 –
multi – language bios – asus ez flash 3 – asus crashfree bios 3 – f12
printscreen – f6 qfan control
wfm 2.0 – dmi 3.0 – wol by pme

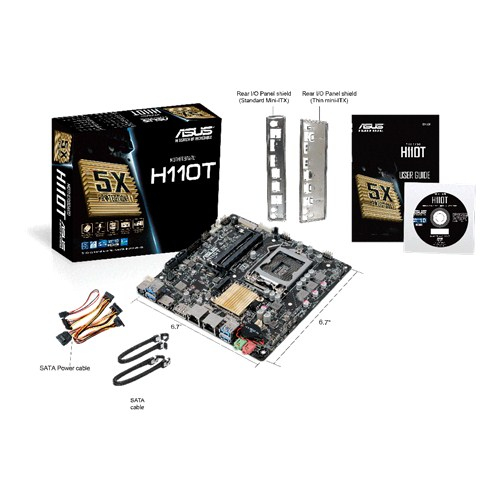

2 x m.2 screw package
2 x seríal ata 6.0gb – s cable
1 x sata power cable
1 x support dvd
2 x i – o shield (1 x mini – itx – 1 x thin mini – itx)
user’s manual
drivers
asus utilities
asus update
anti – virus software (oem versión)
thin mini – itx form factor – 6.7x 6.7 (17.0cm x 17.0cm)
Comprar Placa Base Asus Intel H110T Socket H110T
H110T,90MB0Q40-M0EAY0,4712900372564
